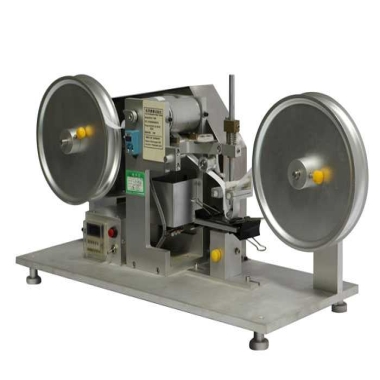

Tape abrasion tester
Application
The Tape Abrasion Tester is designed to evaluate the abrasion resistance and durability of surface coatings and materials. It is widely used for electronic devices such as mobile phones, tablets, MP3 players, keyboards, CDs, and laptops, as well as for plastics, films, leather, synthetic leather, and thin coatings. By simulating real-world wear, it helps manufacturers and quality control teams assess how materials withstand friction, handling, or repeated contact, ensuring the longevity and appearance of their products.
Standards
The Tape Abrasion Tester can be used in laboratories that require compliance with international or industry-specific abrasion and surface durability testing standards:
ISO 5470: Rubber- or plastics-coated fabrics — Determination of abrasion resistance
ASTM D4060: Standard Test Method for Abrasion Resistance of Organic Coatings by the Taber Abraser
DIN 53516: Testing of rubber abrasion resistance
GB/T 20991, GB 20265-2006: Domestic Chinese testing standards for abrasion resistance
Technical Parameters
| Parameter | Specification |
|---|---|
| Test Load | 55 g, 175 g, 275 g |
| Test Speed | 16 R/min |
| Machine Size (L × W × H) | 530 × 490 × 410 mm |
| Machine Weight | 59 kg |
| Power Supply | 1Φ, 220 V, 5 A (or designated) |
| Sample Holder | Flat retainer |
| Accessories | Tools, magnifying glass, 3 O-rings, lap tape |
| Number of Cycles | Preset according to test requirements |
Advantages
High Accuracy and Repeatability: Automatic stop and breakdown detection minimize errors and improve test reliability.
Adjustable Loads: Supports multiple load settings to simulate light to heavy abrasion conditions.
Easy Operation: Simple setup with user-friendly controls and digital counter for cycle tracking.
Compact and Efficient: Suitable for laboratory or production line use without occupying excessive space.
Versatile Testing: Compatible with various surfaces, including coated, printed, or delicate materials.
Debris Management: Efficient removal of debris improves measurement accuracy and extends machine life.
FAQ
1. What is a Tape Abrasion Tester?
A laboratory instrument that measures the wear resistance of coatings or materials by rubbing a tape or paper against the surface under controlled load and cycles.
2. What products can it test?
Mobile phones, keyboards, MP3 players, CDs, laptops, plastics, films, leather, synthetic leather, thin coatings, and other surface-coated materials.
3. Why is it important?
It ensures product durability and appearance, reduces surface wear complaints, and helps manufacturers compare material or coating formulations.
4. How does it operate?
The sample is fixed, and uncoated paper or adhesive tape rubs against the surface for a set number of cycles. The degree of wear is then evaluated visually or by weight loss. Automatic stop and breakdown detection ensure consistent testing.
5. What loads and settings are available?
Loads of 55 g, 175 g, and 275 g; test speed of 16 R/min; number of cycles can be preset up to the required testing range.
6. Can it test wet or chemically influenced surfaces?
Yes. The tester can be used with oil, sweat, or other liquids to simulate real-world chemical and mechanical wear conditions.
7. What advantages does it offer over manual testing?
Automatic operation, precise load control, reproducible results, adaptable to different sample thicknesses, and compact design suitable for both lab and production environments.
