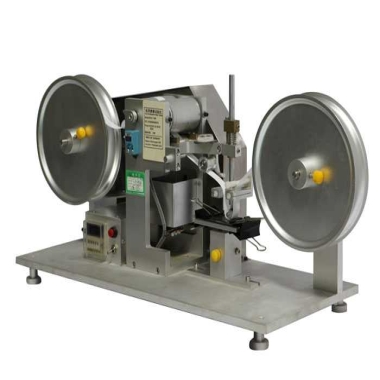

RCA Tape Abrasion Test Machine
Application
The RCA Tape Abrasion Test Machine is designed to evaluate the abrasion resistance and surface durability of coatings, printed layers, and markings on a wide range of electronic products. It is widely used for mobile phones, PDAs, MP3 players, CDs, laptops, and other consumer electronics where surface labeling and coatings must withstand repeated friction.
During testing, uncoated paper or abrasion tape is scrolled across the specimen under a defined load of 55 g, 175 g, or 275 g, applying consistent friction for a preset number of rotations. The machine is suitable for assessing wear performance, print quality durability, and coating adhesion under tape abrasion conditions.
Typical test materials include:
Plastic housings
Painted or coated surfaces
Silk-screened logos and labels
Keypads and buttons
Decorative coatings
Metal and composite surfaces
Standards
This tester is based on common RCA tape abrasion test practices used in the consumer electronics industry and complies with manufacturer requirements for durability evaluation, including:
RCA Abrasion Test Method (Industry Standard)
OEM internal specifications for coating and marking wear resistance
Technical Parameters
| Item | Specification |
|---|---|
| Test Load | 55 g, 175 g, 275 g |
| Test Speed | 16 rpm |
| Machine Size | 530 × 490 × 410 mm |
| Machine Weight | 59 kg |
| Power Supply | 1Φ, 220V, 5A (or customer-specified) |
| Counter | Digital LED counter, 0–9999 rotations |
| Configuration | Tool kit, magnifying glass, loads (55 g / 175 g), flat retainer, 3 O-rings, tape holder |
Product Advantages
Accurate and Repeatable Abrasion Testing
Equipped with a digital counter for precise control of rotation cycles, ensuring consistent wear evaluations.
Automatic Stop Function
Stops automatically once the preset number of cycles is reached, preventing over-testing and reducing errors.
Breakdown Detection
Includes a break-stop function to improve safety and protect specimens during unexpected tape breakage.
Flexible Loading Options
Three standard test loads (55 g, 175 g, 275 g) support testing of soft, medium, and hard materials.
Easy Visibility of Wear Results
Supplied with a magnifying glass for quick inspection of abrasion marks and coating degradation.
Low Operating Cost
Optimized tape usage reduces consumable cost, making it suitable for production-line quality control.
Widely Used in Electronics Manufacturing
Ideal for assessment of coatings, paints, labels, and surface treatments used in high-volume consumer electronics.
