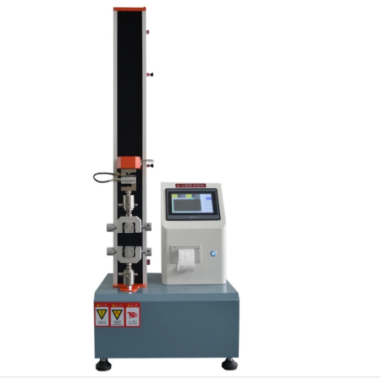

ISO 17708 Shoes Tensile Strength Testing Machine
1. Product Introduction & Applications
The ISO 17708 Shoes Tensile Strength Testing Machine is designed to evaluate the mechanical performance of footwear and other related materials. It performs standardized tests such as:
Peeling of the upper from the outsole
Separation between composite layers of the sole
Tear or rupture testing of the upper or sole
Tensile, compression, bending, shearing, peeling (90° and 180°), and tearing tests
Applications:
Footwear: Shoes, boots, synthetic leather, upper materials, soles, adhesives
Industrial Materials: Textile, rubber, plastic, adhesive tapes, composite materials, films, electronics, and metal components
Quality Control & R&D: Determining material strength, bond durability, and structural integrity
Machine Highlights:
Touch screen PLC control for intuitive operation
Stepless variable speed from 50–300 mm/min
Compact, workbench-mounted design for convenient use
Real-time display of force and displacement
Automatic data storage, calculation, and printing
2. Conformity Standard
ISO 17708 — Footwear testing: tensile strength of shoes, peel, and layer separation
3. Technical Parameters
| Parameter | Specification |
|---|---|
| Load Capacity | 5–200 kg |
| Force Measurement Accuracy | ±1% of indicated value |
| Display Mode | Touch screen PLC control |
| Unit Switching | Kg, lb, N |
| Data Sampling Frequency | 200 times/sec |
| Resolution | 1/±25000 of maximum load |
| Load Cell | Tension & compression sensors (max load) |
| Effective Test Width | 150 mm |
| Effective Stretch Space | 800 mm |
| Test Speed | 50–300 mm/min, stepless regulation; 5 fixed speeds; customizable speeds available |
| Displacement Accuracy | ±1% of indicated value |
| Breakpoint Ratio Setting | 0–99% (user-defined) |
| Test Bench Safety | Up/down stroke limiters |
| Overload Protection | Automatic at >10% maximum load |
| Fixture | One set of stretching clamps |
| Machine Size | Approx. 500 × 400 × 1300 mm |
| Machine Weight | Approx. 100 kg |
| Output | Thermal printer for automatic test report |
Key Features:
Simple and compact design for workbench use
Real-time measurement and display of force and displacement
Automatic calculation of maximum force, average value, and breaking force
Thermal printer included for easy result output
Safety devices and overload protection for operator and sample protection
4. FAQ
Q1: What types of materials can be tested?
A1: This machine can test footwear materials (upper, sole, adhesives) as well as textile, rubber, plastic, synthetic leather, composite materials, and metal components.
Q2: Can the test speed be customized?
A2: Yes, the standard range is 50–300 mm/min, but special test speeds can be customized per customer requirements.
Q3: How is the force measured?
A3: A high-precision tension and compression load cell records force in real time, with ±1% accuracy.
Q4: Can multiple tests be stored or printed automatically?
A4: Yes, the machine can store results for 10 reference points, calculate averages, grab the maximum value, and print reports via the integrated thermal printer.
Q5: Is the machine safe for operation?
A5: Yes, it includes stroke limiters and overload protection, automatically stopping if the maximum load exceeds 10%.
