Application of Taber Abrasion Tester (Single Station)

Customer Background

A materials testing laboratory serving manufacturers in the coating, plastic, and automotive interior industries required reliable equipment to evaluate the abrasion resistance of surface materials. The laboratory frequently performs durability tests for coatings, decorative laminates, plastics, and other flat materials used in consumer and industrial products.

As testing demand increased, the customer needed a precise and repeatable abrasion testing instrument capable of simulating real wear conditions while meeting routine laboratory testing requirements.

Customer Requirements

During the equipment selection process, the customer identified several key requirements:

(1) Accurate evaluation of abrasion resistance for various flat materials

(2) Stable and repeatable testing results

(3) Adjustable load and rotation speed to simulate different wear conditions

(4) Wide cycle setting range for durability testing

(5) Compact equipment suitable for laboratory use

(6) Easy operation and convenient maintenance

Solution Provided

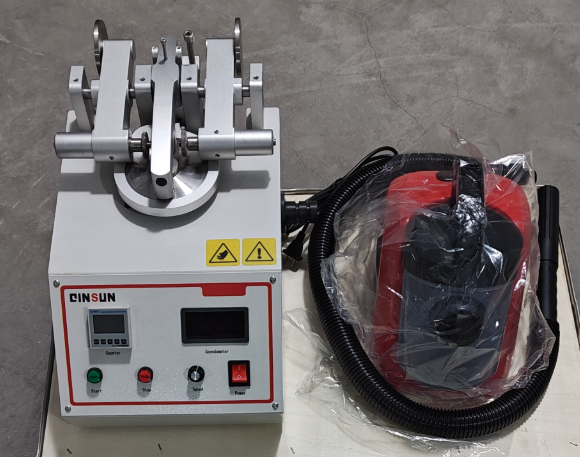

We supplied the Taber Abrasion Tester (Single Station), which evaluates surface wear resistance by applying controlled friction between abrasion wheels and the specimen under specified loads and speeds.

The abrasion wheels are pre-conditioned according to standard procedures, ensuring high repeatability and consistency of test results.

Application Scope

The instrument is suitable for evaluating the abrasion resistance of a wide range of flat materials, including:

(1) Luggage materials

(2) Carpets and textiles

(3) Paperboard and decorative laminates

(4) Glass and plastic coatings

(5) Ceramic tiles

(6) Metal plating and anodized layers

(7) Paints and varnishes

(8) High-pressure laminates

(9) Plastic materials

(10) Elastic floor coverings

(11) Traffic paints

(12) Automotive interior materials

(13) Electronic components

(14) Furniture surfaces and decorative panels

(15) Leather covers and labels

Key Advantages for the Customer

Adjustable Testing Speed

The tester offers a rotation speed range of 30–75 r/min, adjustable via digital display, allowing the laboratory to simulate different abrasion conditions.

Flexible Load Configuration

The system supports multiple load configurations:

Empty arm load: 250 g

Optional weights: 250 g, 500 g, 750 g, 1000 g

Dual wheel pressure range: 125 g – 1250 g

This flexibility allows testing of materials with varying hardness and wear resistance.

Wide Cycle Setting Range

The tester allows a cycle setting range of 1–999,999 cycles, enabling both short-term wear evaluation and long-duration durability tests.

Standard Specimen Compatibility

The machine supports specimen diameters of 100 mm or 113 mm, which are common sizes used in abrasion resistance testing.

Compact and Laboratory-Friendly Design

With dimensions of 220 × 380 × 300 mm and a weight of approximately 20 kg, the tester fits easily into laboratory environments while maintaining stable operation.

Working Principle

The Taber Abrasion Tester evaluates material wear resistance by rotating a test specimen under specified loads while two abrasion wheels apply friction to the surface.

During the test, parameters such as:

(1) Mass loss

(2) Thickness reduction

(3) Transparency change

are measured to assess the abrasion resistance and service life of the material.

Customer Results

After implementing the Taber Abrasion Tester, the laboratory reported:

Improved accuracy in abrasion resistance evaluation

Higher consistency between repeated tests

Increased testing efficiency for multiple materials

Enhanced ability to support customer product development and quality verification

The instrument has become a key testing device in the laboratory’s surface durability testing system.
