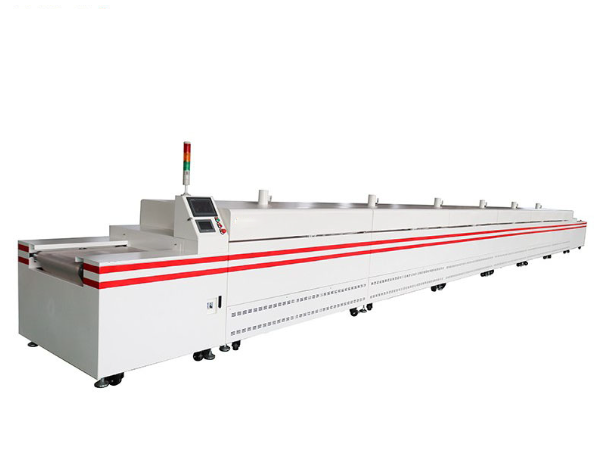

80-Meter Long Foaming Furnace
The 80-meter long foaming furnace is an industrial-grade, ultra-long continuous thermal processing equipment mainly used for heating, foaming, and curing molding of polymer materials.The equipment adopts a segmented independent temperature control design, featuring extremely high temperature uniformity and a stable conveying system. It ensures uniform foaming of materials under long-duration and long-distance high-temperature conditions, making it a core equipment for large-scale and high-efficiency continuous production.
Applications
Plastic Foaming:
Used for continuous foaming of plastic sheets or rolls made of materials such as PE (Polyethylene), EVA, and PVC.
Rubber Foaming:
Used for vulcanization foaming of rubber sealing strips, insulation pipes, and foam rubber pads.
New Building Materials:
Used for continuous production of polyurethane (PU) insulation boards and exterior wall insulation materials.
Automotive Interior Materials:
Used for manufacturing foam cushioning and sound insulation materials such as automobile headliners and door panels.
Parameters
| Parameter Item | Technical Specification |
|---|---|
| Total Equipment Length | 80 meters (can be divided into sections according to factory layout requirements) |
| Working Temperature | Room temperature to 250℃ (maximum up to 300℃) |
| Temperature Control Accuracy | ±1℃ |
| Heating Method | Natural gas heating / Electric heating / Heat transfer oil heating |
| Conveyor Speed | 0.5–15 meters/minute (variable frequency stepless speed regulation) |
| Effective Working Width | 1200 millimeters–2500 millimeters (customized according to requirements) |
Features
Precise Temperature Control:
The equipment adopts multi-zone independent microcomputer control, ensuring extremely small temperature differences inside the furnace.
High Efficiency and Energy Saving:
High-density composite insulation materials are used to significantly reduce heat loss.
Synchronized Conveying:
Special high-temperature resistant mesh belts or chain transmission systems ensure stable operation without stretching.
Intelligent and Environmentally Friendly:
Equipped with exhaust gas collection and heat energy recovery systems, meeting environmental protection requirements.
