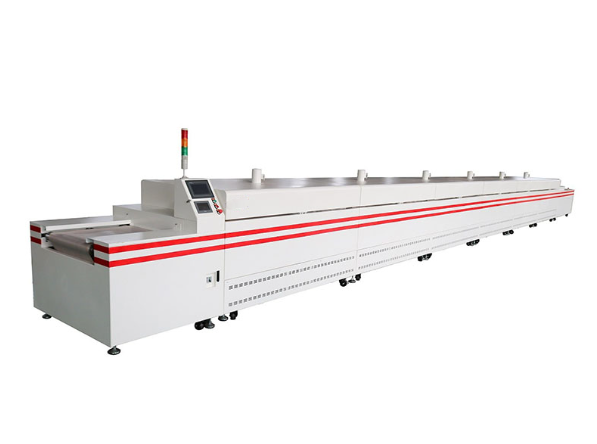

Heat Shrink Sleeve Heating Tunnel Furnace
The heat shrink sleeve heating tunnel furnace is an industrial-grade continuous heating equipment specially designed for the rapid and uniform heat shrinking of various heat shrink tubes, heat shrink sleeves, and wire harness terminals.
Applications
Wire Harness Insulation:
Used for continuous heating and shrinking of heat shrink tubes on automotive and electronic wire harness terminals.
Pipeline Anti-Corrosion:
Used for heating and sealing heat shrink tapes at steel pipe and copper pipe joints.
Component Protection:
Used for heat shrink packaging of electronic components such as capacitors and battery packs.
Waterproof Sealing:
Used for heating and curing heat shrink waterproof sleeves for communication cable joints.
Parameters
| Parameter Item | Technical Specification |
|---|---|
| Conveyor Speed | 0.5–5 meters/minute (variable frequency speed regulation) |
| Working Temperature | Room temperature–300℃ (adjustable and controllable) |
| Heating Power | 9–24 kilowatts (depending on equipment model size) |
| Power Supply Voltage | 380V, 50Hz (three-phase five-wire system) |
| Furnace Chamber Material | SUS304 stainless steel |
| Temperature Control Accuracy | ±1℃ |
Features
Uniform Heating:
The equipment adopts a hot air circulation system, ensuring extremely small temperature differences throughout the furnace chamber.
Efficient Continuous Operation:
The tunnel-type production line operation is suitable for large-scale batch production.
Precise Temperature Control:
Equipped with an intelligent PID digital temperature controller, providing sensitive temperature feedback and accurate control.
Safe Thermal Insulation:
Uses a high-density aluminum silicate fiber insulation layer, keeping the equipment surface temperature low.
Adjustable Speed:
The conveyor belt speed supports stepless adjustment, allowing adaptation to different heat shrink materials.
