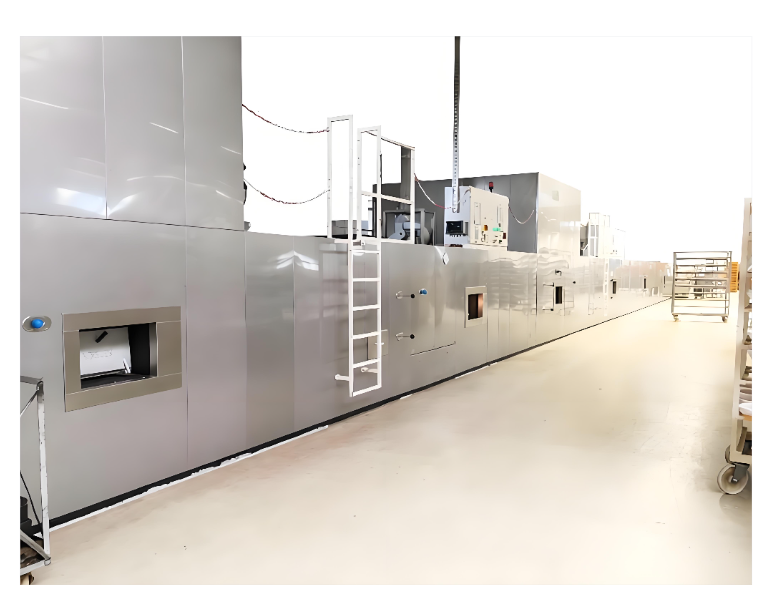

Solar Tunnel Oven
The Solar Tunnel Oven is a high-temperature continuous baking and drying system designed for solar energy components, electronic materials, precision parts, and other industrial applications requiring stable high-temperature processing. The equipment adopts SUS304 stainless steel inner chamber construction, precision PID temperature control, and optimized hot air circulation technology to achieve uniform heating and reliable drying performance.
With a maximum adjustable temperature of 360℃, the tunnel oven provides excellent temperature stability and clean processing conditions. The conveyor system, temperature monitoring system, and dust-control design ensure consistent product quality during continuous production.
Application
The Solar Tunnel Oven is widely used for high-temperature drying, baking, curing, and heat treatment processes, including:
Solar cell and photovoltaic component processing
Ceramic material drying and sintering processes
Electronic component baking
Precision parts heat treatment
Glass and optoelectronic product processing
Coating and adhesive curing applications
Clean production lines requiring high-temperature stability
It is suitable for industries requiring accurate temperature control, low contamination, and continuous automated production.
Parameters
| Item | Specification |
|---|---|
| Equipment Type | Solar Tunnel Oven |
| Power Supply | AC380V, 3 Phase, 50Hz, 85KVA |
| CDA Supply | 16L/min, 5.0–7.0 kg/cm² |
| Exhaust Capacity | MAX 10.0 m³/min |
| Exhaust Pipe | Central exhaust pipe Ø100mm × 6 pcs |
| Exhaust Temperature | Below 150℃ |
| Conveyor Speed | 0.3–3.0 m/min adjustable |
| Standard Working Speed | 1.0 m/min |
| Conveyor Material | PET-FILM & COVERLENS |
| Conveyor Belt Color | Milky white |
| Conveyor Belt Specification | 04#25 specification, lap joint |
| Working Width | 800mm (customizable) |
| Maximum Temperature | 360℃ adjustable |
| Temperature Uniformity | ≤±5℃ (excluding inlet and outlet areas) |
| Inner Chamber Material | SUS304 stainless steel plate, thickness 1.2mm |
| Insulation Material | High-density aluminum silicate ceramic fiber insulation |
| Door Sealing | High-temperature silicone sealing gasket |
| Temperature Controller | OMRON PID temperature controller |
| Temperature Control Accuracy | ±0.3% FS |
| Temperature Monitoring | Six-channel temperature recorder with USB data export |
| Heating Element | Medium-wave quartz electric heating tubes |
| Air Circulation Method | Special airflow design for uniform temperature distribution |
| Conveyor Drive System | Taiwan Wanxin geared motor + reducer + inverter + gear chain drive |
| Conveyor Belt Surface | Smooth surface, prevents product scratches |
| External Surface Temperature | Below 45℃ (excluding inlet/outlet and exhaust areas) |
| Upper Cover Opening | Electric cylinder lifting system with support rod protection |
| Safety Protection | Phase sequence protection, overload protection, control circuit protection, emergency stop, over-temperature protection |
Features
High Temperature Processing Capability
The Solar Tunnel Oven supports temperatures up to 360℃, making it suitable for high-temperature drying, baking, and curing applications.
Stable Temperature Control
Equipped with OMRON PID temperature controllers and SSR solid-state relay output, the system provides accurate temperature adjustment and stable operation.
Uniform Heating Performance
The optimized airflow circulation structure ensures even heat distribution inside the tunnel and improves product processing consistency.
Clean Production Structure
The inner chamber is made of SUS304 stainless steel with full argon arc welding. Stainless steel components and low-friction conveyor support rollers help reduce particle generation.
Reliable Conveyor System
The conveyor system provides smooth product transportation with reduced vibration, helping prevent scratches, edge damage, and contamination.
High-Quality Drying Results
The optimized heating process helps prevent defects such as bubbles, over-baking, yellowing, and white spots after baking.
Advanced Temperature Monitoring
The six-channel temperature recording system monitors temperature changes in different sections and supports USB data export for process traceability.
Dust and Static Control Design
The inlet dust-removing roller helps maintain conveyor cleanliness, while the outlet static elimination bar reduces electrostatic problems during transportation.
Flexible Customization
The working width, tunnel length, temperature range, conveyor design, and control system can be customized according to customer production requirements.
Safe Operation System
Multiple protection functions, including overload protection, phase protection, emergency stop, and over-temperature protection, ensure safe and reliable operation.
