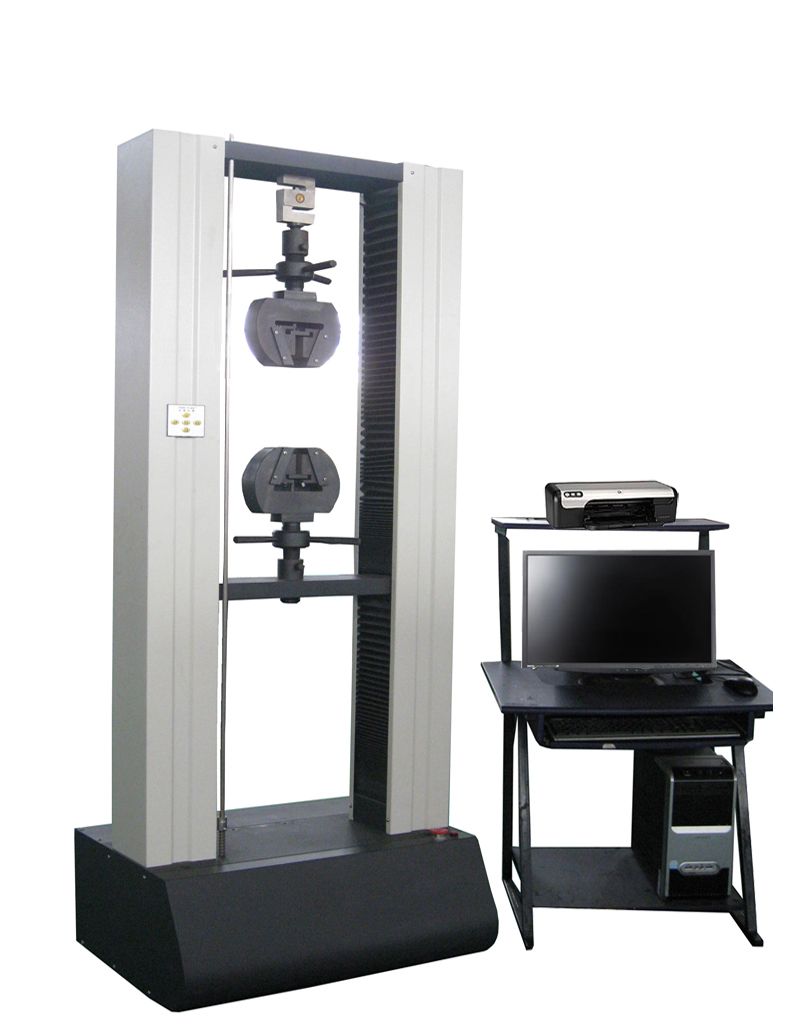

Universal Textile Strength Tester
The Universal Textile Strength Tester (UTE Series) is a versatile testing instrument designed for evaluating the mechanical properties of textiles, yarns, ropes, and similar materials. It measures tensile strength, elongation at break, seam strength, stitch slippage, tear strength, and peel strength. The system supports modular software-based testing, allowing users to select testing modules according to actual requirements. Both standard and custom test programs are available, providing flexibility and efficiency for research, quality control, and production verification.
Applications
(1) Textile testing: fabric, yarn, nonwoven, and composite materials.
(2) Plastic and polymer material testing for tensile, compression, bending, and peel performance.
(3) Biomedical materials evaluation, including elastic and composite materials.
(4) Automotive and aerospace components for mechanical strength and durability tests.
(5) R&D and quality control laboratories for new product development and verification.
(6) Routine production testing for product performance validation.
Standards
The UTE Series is compliant with the following international and national standards:
(1) ASTM D434 / D1683 / D2261 / D5034 / D5035 / D5587 – Textile mechanical testing
(2) ASTM D2724 – Yarn and fabric testing
(3) ISO 13934-1 / 13934-2 / 13935-1 / 13935-2 / 13937-2 / 13937-3 / 13937-4 – Tensile, tear, and peel testing
(4) ISO 13936-1 / 13936-2 – Seam strength and stitch slippage
(5) GB/T 3917 / 3923 – Textile testing methods
(6) GB/T 13772-1 / 13772-2 / 13772-3 – Tensile and elongation
(7) GB/T 13773-1 / 13773-2 – Tear and peel testing
(8) GB/T 19976 – General mechanical testing for materials
(9) FZ/T 80007 – Textile strength test methods
(10) JIS L1096 – Textile testing standard
Parameters
| Model | UTE0505 | UTE1010 | UTE2020 |
|---|---|---|---|
| Load Capacity | 5 kN | 10 kN | 20 kN |
| Force Accuracy | ±0.5% | ±0.5% | ±1% |
| Reproducibility | ±0.5% | ±0.5% | ±0.5% |
| Repeatability | ±0.25% | ±0.25% | ±0.25% |
| Max Speed | 500 mm/min | 600 mm/min | 600 mm/min |
| Min Speed | 0.03 mm/min | 0.03 mm/min | 0.03 mm/min |
| Return Speed | 500 mm/min | 600 mm/min | 600 mm/min |
| Crosshead Travel | 600 mm | 800 mm | 800 mm |
| Max Vertical Test Space | 650 mm | 1000 mm | 1000 mm |
| Column Spacing | 400 mm | 400 mm | 400 mm |
| Height | 1160 mm | 1300 mm | 1360 mm |
| Width | 550 mm | 650 mm | 650 mm |
| Depth | 540 mm | 540 mm | 540 mm |
| Weight | 110 kg | 142 kg | 150 kg |
| Power Supply | 220V AC, 50Hz | 220V AC, 50Hz | 220V AC, 50Hz |
| Clamp Type | Manual or Pneumatic | Manual or Pneumatic | Optional per requirement |
Features
(1) Modular testing system allowing addition of specialized modules per test requirements.
(2) Supports both standard and custom testing programs for flexibility.
(3) High measurement accuracy with excellent reproducibility and repeatability.
(4) Suitable for a wide range of materials, including textiles, plastics, composites, elastomers, automotive, and aerospace components.
(5) User-friendly Stiro software enables real-time data acquisition, statistical analysis, and reporting.
(6) Reduces testing time, long-term operational costs, and ensures high-quality, reliable data.
(7) Robust mechanical design for long-term stable performance and minimal peak load fluctuations.
Accessories
(1) Manual clamps
(2) Pneumatic clamps (optional)
(3) Stiro software for data acquisition and analysis
(4) Calibration tools
(5) Test fixtures for tensile, tear, peel, and seam tests
(6) Sample grips for yarns, fabrics, and composite materials
Test Procedures
Select the appropriate clamp type and test fixture.
Mount the sample according to the testing standard.
Set the test program in the Stiro software (standard or custom).
Adjust speed, load capacity, and test parameters.
Start the automated testing sequence.
Monitor real-time force, elongation, and other relevant parameters.
Save data and generate reports for analysis.
Maintenance Information
(1) Regularly clean and lubricate moving parts of the machine.
(2) Periodically calibrate load cells and sensors to maintain measurement accuracy.
(3) Check clamps and fixtures for wear or damage.
(4) Ensure software updates and backup of test data.
(5) Avoid exposing the machine to excessive dust, moisture, or corrosive environments.
FAQ
What is this product?
A versatile strength testing machine for textiles, yarns, ropes, and composite materials.
What is it used for?
To evaluate tensile strength, elongation, tear, peel, seam strength, and stitch slippage under controlled conditions.
Why is it important?
Ensures product performance and quality control, provides reproducible and accurate mechanical property data.
Which industries can use it?
Textiles, plastics, biomedical, automotive, aerospace, composite materials, and consumer goods industries.
What types are available?
UTE Series with 5 kN, 10 kN, and 20 kN load capacities; optional pneumatic or manual clamps and modular software for custom testing.
