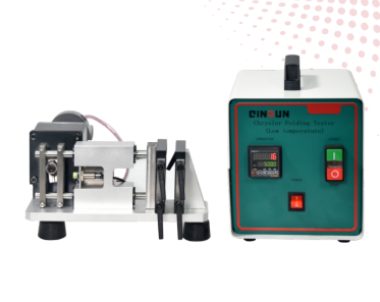

Low Temperature Bending Tester
The Low Temperature Bending Tester is designed for evaluating a material’s flexibility, durability, and resistance to cracking under extreme cold conditions. By recreating environments from everyday winter climates to severe Arctic temperatures as low as –60°C, the tester helps manufacturers understand how plastics, coated fabrics, synthetic leather, footwear materials, gloves, and technical textiles perform when exposed to low-temperature mechanical stress.
This instrument is widely used in R&D laboratories, product quality inspection, and material certification centers across multiple industries.
Compliant Testing Standards
The tester meets several recognized international test methodologies:
| Standard | Description |
|---|---|
| ASTM D1790 | Brittleness temperature test for plastic sheeting under impact |
| ASTM D1593M | Low-temperature flexibility test for coated fabrics |
| JIS K6545 | Flexing endurance method for leather and synthetic materials in cold environments |
Product Advantages
Extreme Temperature Performance
Supports continuous testing from ambient temperature down to –60°C, suitable for Arctic-grade performance evaluation.
Dual Fixture Configurations
Choose between 6-station (1.5 Hz) and 12-station (100 cycles/min) setups to meet different testing protocols and material types.
Precision Cooling System
Equipped with France Taikang compressors and R404A refrigerant, reaching –60°C within 60 minutes with an accuracy of ±0.5°C.
Enhanced Operational Safety
Includes overload protection, thermal shutdown, leakage protection, and vacuum-insulated viewing windows.
Modular Fixture Design
Interchangeable V-shaped fixtures (40° angle, 6.4 mm radius) support various materials including footwear uppers, gloves, coated textiles, and flexible plastics.
Energy Efficient
Uses hard foam and glass-wool insulation combined with a 4 kW power system to reduce operating costs without sacrificing performance.
Product Features
High-Durability Stainless Steel Chamber
Made with 304 stainless steel and dual-layer vacuum glass windows for corrosion resistance and long service life.
Omron Programmable Controller
Allows precise control of temperature ramps, cycle counts, and dwell times with real-time LCD monitoring.
Rapid Cooling Technology
Cascading refrigeration achieves –30°C in 45 minutes and –60°C in 60 minutes.
Comprehensive Safety System
Automatic delay protection for compressors, over-temperature alarms, and electrical leakage protection.
LED-Illuminated Test Chamber
Built-in 5 W LED lighting provides clear observation during flexing tests.
Flexible Multi-Station Design
Offers 12 clamps (22.5° angle) or 6 clamps (40° V-shaped) to accommodate different international testing methods.
Technical Parameters
| Parameter | Specification |
|---|---|
| Temperature Range | Ambient to –60°C (dual models) |
| Temperature Control Accuracy | ±0.5°C |
| Temperature Uniformity | ±2°C |
| Cooling Rate | –30°C in 45 min / –60°C in 60 min |
| Fixture Options | 6 or 12 stations (V-shaped or flat) |
| Flexing Frequency | 1.5 Hz or 100 cycles/min |
| Power Supply | AC 380 V, 50 Hz, 4 kW |
| Internal Chamber Size (W × D × H) | 60 × 60 × 55 cm |
| Overall Footprint (W × D × H) | 110 × 105 × 160 cm |
| Net Weight | 420 kg |
| Safety Certifications | CE, ISO 12100, RoHS |
As a professional testing instrument manufacturer and a complete laboratory testing solution provider, we offer not only high-performance equipment but also expert consultation, fixture customization, laboratory planning, and turnkey testing solutions.
If you are looking for a reliable low-temperature bending testing system or need a customized solution for specific materials, our engineering team is ready to support you.
Frequently Asked Questions (FAQ)
1. What types of materials can be tested in extreme cold conditions?
The tester is suitable for plastics, coated fabrics, synthetic leather, rubberized materials, footwear uppers, gloves, and flexible textiles that require cold-resistance or anti-cracking evaluation.
2. Does the machine support multiple international test methods?
Yes. It complies with ASTM D1790, ASTM D1593M, and JIS K6545, covering the majority of global low-temperature bending requirements.
3. How long does the tester take to reach –60°C?
With its dual-stage cooling system, it reaches –60°C in approximately 60 minutes, with a stability accuracy of ±0.5°C.
4. Can I choose different fixture configurations?
Absolutely. The tester offers 6-station and 12-station versions, as well as interchangeable V-shaped and flat fixtures to match specific test standards.
5. Is customization available for special test applications?
Yes. As the manufacturer, we can provide customized clamps, chamber sizes, temperature profiles, or complete testing solutions based on your material and industry requirements.
