PAV rating tester/Universal pilling viewer

PAV rating tester/Universal pilling viewer

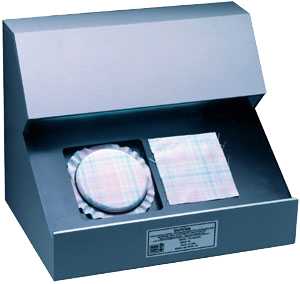

Universal Pilling Assessment Viewer/PAV rating tester:Pilling Assessment Viewer (PAV) is available for assessment standards of all pilling and snagging tests. The assessment result is achieved by comparing the sample to the standard card under the specified light source. It is an auxiliary assessment tool for the Martindale Pilling Test, ICI Ball test, ICI snagging test, Random tumble of pilling test, Circular locus method pilling test and others. It is widely used in textiles and clothing industry, meets with most of the pilling test standards.

Technical Parameters:
Items Parameters
Size length x width x height (L x W x H): 240mm x340mm x 280mm
Observation area size length x width x height (L x W x H): 240mm x340mm x 165mm
Weight 10kg (22lbs)
Light source D65: Artificial daylight source, suitable for the occasion that require color consistency and color quality, meets with CIE accurate color evaluation requirements.
Color temperature 6500K, power 20w.
Light source CWF (optional): cool white fluorescent, general shop / office lighting wide band fluorescence.
Color temperature 4150K, power 20w.

Standards compliant:
BS 5811  Test method for fabric pilling resistance and deformation resistance
BS EN ISO 12945 Textiles - Determination of the pilling tendency of the surface of the fabric
ASTM D 3512 Test method for random tumble of pilling tester
ASTM D 4970 Test method for pilling resistance and other related surface changes in textiles
ASTM D 5362 Standard test method for the performance of anti - snagging of fabrics
IWSTM 152; Next TM 19/26

Applications:
Martindale pilling test;
ICI pilling test;
ICI hook test;
Chaos from the ball test;
Round track method pilling test.



Note:QINSUN always been committed to innovation and improve product performance and functionality, based on the reasons, the product specifications will be changed accordingly. The above without prior notice, the Company reserves the right to amend the final.
