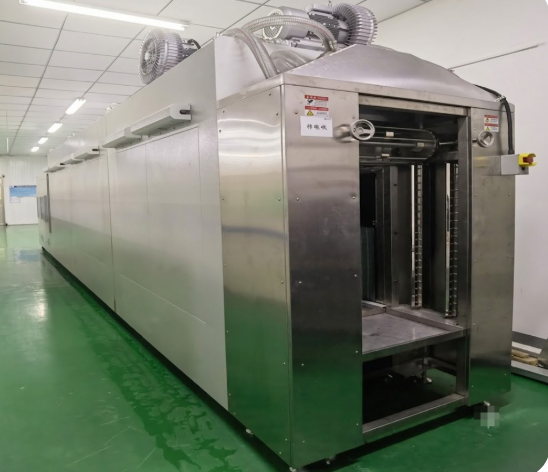

Conveyor Curing Oven
The conveyor curing oven is a customized tunnel-type drying system designed for continuous production. It adopts a bidirectional airflow structure and multi-zone independent temperature control, ensuring stable heating and uniform curing performance. The system is equipped with a Mitsubishi HMI and PLC for automated operation and precise process control.
Applications
Widely used in industries such as electronics, automotive components, new energy, molds, motors, coils, and stators for drying and curing processes.
Specifications
| Item | Specification |
|---|---|
| Overall Dimensions | Approx. L12000 × W1250 × H1760 mm |
| Heating Section Length | 11200 mm |
| Inlet Height | 220 mm |
| Inlet Width | 850 mm |
| Infeed / Outfeed Length | 400 mm / 400 mm |
| Temperature Zones | 5 independent zones |
| Temperature Range | Ambient to 150°C |
| Temperature Uniformity | ±5°C (no-load, steady state) |
| Temperature Control Accuracy | ±1°C |
| Heating Rate | 8°C/min |
| Surface Temperature | ≤ Ambient +15°C (excluding joints) |
| Airflow System | Left-right forced airflow |
| Power Supply | 3-phase, 5-wire, 380V, 50Hz |
| Heating Element | 304 stainless steel heaters |
| Total Power | Approx. 50 kW |
| Control System | Mitsubishi HMI + PLC |
Features
Multi-zone independent temperature control
Stable conveyor operation
Uniform heating performance
PLC automated control system
Suitable for continuous production lines
