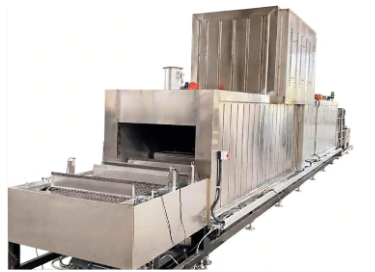

Epoxy Adhesive Curing Drying Tunnel Oven
The Epoxy Adhesive Curing Drying Tunnel Oven is a continuous hot air circulation and infrared heating system specially designed for industrial automated production lines.By precisely controlling different temperature zones, the equipment enables epoxy resin adhesives applied on electronic components, automotive parts, and composite materials to complete molecular cross-linking and curing reactions quickly and uniformly.
Applications
Electronic Components
Chip bonding and adhesive curing.
Inductor coil encapsulation.
Transformer impregnation curing.
PCB dispensing and adhesive curing.
Automotive Components
Fixing of enameled wires on motor rotors.
Automotive lamp sealing adhesive curing.
Sensor encapsulation and bonding.
Hardware and Plastic Products
Resin coating and adhesive curing for nameplates.
Surface coating drying of handicrafts.
Drying and curing of composite laminate materials.
Optical and Acoustic Products
Rapid curing of adhesive applied on camera modules.
Adhesive curing and shaping of acoustic speaker components.
Technical Parameters
| Parameter | Specification |
|---|---|
| Conveyor Belt Width | 300mm – 1200mm (Customized available) |
| Working Temperature | Room temperature – 200℃ (High-temperature model up to 300℃) |
| Temperature Control Accuracy | ±1℃ |
| Number of Heating Zones | 3 – 8 independent temperature control zones |
| Conveyor Speed | 0.1 – 5 m/min (Variable frequency speed control) |
| Heating Elements | Stainless steel heating tubes / Far infrared quartz heating tubes |
| Power Supply | AC 380V, 50Hz (Three-phase five-wire system) |
Features
Precise Temperature Control
Equipped with PID intelligent digital temperature controllers, each heating zone adopts independent closed-loop temperature control to ensure stable curing conditions.
Uniform Heating Performance
A powerful hot air circulation system combined with specially designed air ducts ensures no dead zones inside the oven and minimizes temperature differences.
High Efficiency and Energy Saving
The equipment uses high-density aluminum silicate fiber insulation layers to effectively retain heat, keeping the outer surface temperature close to ambient temperature and reducing energy consumption.
Adjustable Conveying Speed
Available with Teflon mesh belts, stainless steel mesh belts, or chain conveyors. Combined with variable frequency speed control, the system can be easily integrated into automated production lines.
Safe and Reliable Operation
Equipped with over-temperature alarm, phase-loss protection, and leakage protection. An exhaust and smoke extraction system can be optionally installed for processes involving volatile gases.
