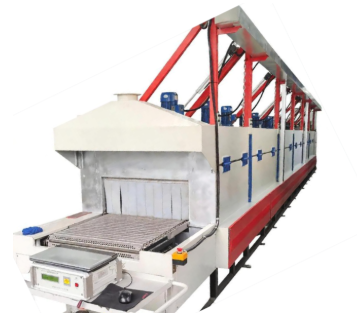

Tunnel Oven for Aircraft Parts Industry
The Tunnel Oven for Aircraft Parts Industry is a high-precision continuous industrial heat treatment system. It is specially designed for curing, drying, aging, and stress-relief baking of advanced aerospace materials, such as carbon fiber composites, high-performance alloys, and aerospace aluminum alloys. The equipment complies with strict military and civil aviation standards, including AMS2750 (Aerospace Material Specification).
Applications
Composite Material Curing:
Used for heating and shaping carbon fiber composite components such as aircraft wings and fuselage structures.
Metal Stress Relief:
Applied for eliminating internal stress in precision-machined aerospace components.
Special Coating Drying:
Used for continuous drying of anti-corrosion and wear-resistant coatings on aircraft components.
Alloy Heat Aging:
Used to improve the mechanical strength and hardness of aluminum alloy and titanium alloy components.
Product Parameters
| Parameter | Technical Specifications |
|---|---|
| Temperature Range | Room temperature to 450℃ (higher temperatures can be customized) |
| Temperature Control Accuracy | ±0.5℃ |
| Temperature Uniformity Inside Furnace | ±3℃ to ±5℃ (meets AMS2750 requirements) |
| Conveyor Speed | 0.1 – 5 m/min (variable frequency stepless speed regulation) |
| Conveyor Belt Material | SUS314 stainless steel mesh belt / Teflon conveyor belt / chain conveyor system |
| Heating Methods | Infrared radiation heating / hot air circulation / combined heating system |
Features
Excellent Temperature Uniformity:
The specially designed airflow circulation system ensures extremely uniform heating for precision aerospace components.
Accurate Process Data Recording:
The complete process data traceability system meets the strict process verification requirements of the aerospace manufacturing industry.
Independent Zone Control:
Multiple independent temperature zones allow flexible configuration of heating, soaking, and cooling process curves.
High Cleanliness Level:
The furnace chamber is fully welded with stainless steel and equipped with high-efficiency filtration systems to prevent surface contamination of components.
