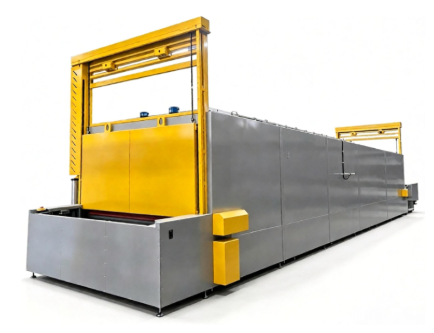

Hydrogen Cylinder Liner Drying Tunnel Oven
The Hydrogen Cylinder Liner Drying Tunnel Oven is a high-efficiency continuous drying system specially designed for the inner liners of vehicle-mounted high-pressure hydrogen storage cylinders (such as Type III and Type IV cylinders) after cleaning. The system adopts chain conveyor, mesh belt conveyor, or step-by-step conveying methods to transport the liners through multiple heating zones at a constant speed. Through precise temperature control and hot air circulation technology, the equipment quickly evaporates and removes residual moisture inside and on the surface of the liners, ensuring that the drying level meets the strict process requirements for subsequent filament winding or assembly.
Applications
Residual Water Drying:
Completely removes residual moisture from deep holes and micro-pores inside liners after cleaning.
Coating Curing:
Used for heat curing of anti-corrosion coatings applied on the surface of some metal liners.
Stress Relief Treatment:
Used for stress-relief heat treatment of plastic liners (Type IV cylinders).
Process Integration:
Provides seamless connection between the cleaning process and filament winding process in automated hydrogen cylinder production lines.
Technical Parameters
| Parameter | Specification |
|---|---|
| External Dimensions (mm) | W2650 × D10840 × H4165 |
| Inner Chamber Dimensions (mm) | W2200 × D8820 × H1200 |
| Exterior Material | Made of cold-rolled steel plate, surface polished and finished, with high-temperature electrostatic powder coating treatment |
| Inner Chamber Material | Stainless steel plate construction, ensuring a clean and dust-free working environment |
| Temperature Range | Room temperature to 150℃ (adjustable) |
| Temperature Uniformity | ±4℃ (under no-load constant temperature condition) |
| Thermal Insulation | 100mm thick insulation layer filled with 100K high-temperature resistant aluminum silicate rock wool |
| Power Supply | 380V, three-phase five-wire system |
| Heating Method | Electric heating |
| Conveyor System | Chain conveyor + pallets |
| Control System | PLC + touch screen control, SSR (Solid State Relay) regulates heating output. PID self-tuning temperature rise process is adopted. Baking time and temperature can be freely set, and conveyor speed can be adjusted through a frequency converter. |
| Electrical Components | Other electrical components adopt Omron or Schneider control components |
Features
Excellent Temperature Uniformity:
The specially designed air duct system ensures uniform heating of hydrogen cylinder liners.
Energy Efficient:
High-quality insulation materials combined with hot air circulation technology effectively reduce heat loss and energy consumption.
Explosion-Proof Design:
Optional explosion-proof heating elements and safety pressure relief ports are available for enhanced operational safety.
Intelligent Control:
PLC touch screen control system with independent multi-zone temperature regulation.
Stable Operation:
Specially designed fixtures prevent liners from rolling, collision, or surface damage during transportation.
