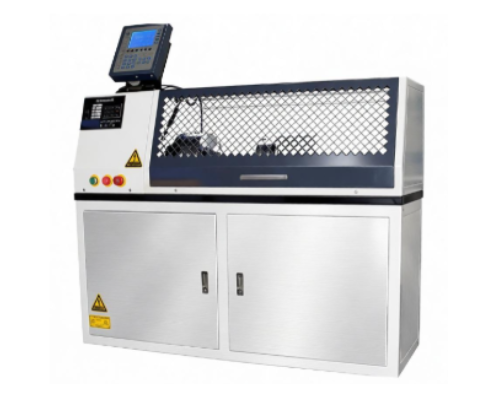

Non-Metallic Material Torsion Testing Machine
The Fully Automatic Digital Display Non-Metallic Material Torsion Testing Machine is mainly used for torsional mechanical performance testing of various non-metallic materials, composite materials, and raw materials.
Application
The Fully Automatic Digital Display Non-Metallic Material Torsion Testing Machine is mainly used for torsional mechanical performance testing of various non-metallic materials and raw materials.The tested specimens are installed between adjustable fixtures with adjustable spacing, and torsion mechanical performance tests are performed to evaluate the torsional properties of materials.
Standards
GB/T 10128 — Metallic Materials — Torsion Test Method at Room Temperature
GB/T 2611 — General Requirements for Testing Machines
GB/T 16825.1 — Verification of Static Uniaxial Testing Machines
ASTM D1043 — Standard Test Method for Stiffness Properties of Plastics as a Function of Temperature by Torsion Test
ASTM E143 — Standard Test Method for Shear Modulus at Room Temperature
ISO 7800 — Metallic Materials — Wire — Simple Torsion Test
Technical Specifications
| Item | Technical Parameters |
|---|---|
| Product Name | Fully Automatic Digital Display Non-Metallic Material Torsion Testing Machine |
| Maximum Test Torque | 10 N·m / 50 N·m / 100 N·m / 200 N·m / 500 N·m |
| Torque Measurement Range | 1%–100% |
| Minimum Torque Reading Value | 0.01 N·m / 0.1 N·m |
| Torque Test Resolution | 1/±300000 |
| Torque Indication Relative Error | ≤±1.0% (Both Forward and Reverse Directions) |
| Torque Repeatability Relative Error | ≤1.0% (Both Forward and Reverse Directions) |
| Rotation Angle Measurement Range | 0–10000° (Customizable) |
| Rotation Angle Indication Relative Error | ≤±1% (Both Forward and Reverse Directions) |
| Minimum Rotation Angle Reading Value | 0.01° |
| Test Rotation Speed | 0.1–720°/min (Customizable) |
| Torsion Speed Indication Relative Error | ≤±1% (Both Forward and Reverse Directions) |
| Torsion Speed Repeatability Error | ≤1% |
| Distance Between Loading Plate and Torque Plate | 0–500 mm (Customizable) |
| Specimen Clamping Method | Negotiable |
| Testing Machine Accuracy Grade | Grade 1 / Grade 0.5 |
| Power Supply | 220 V ±10%, 50 Hz |
Features
Fully automatic control with digital display operation.
Suitable for torsion performance testing of various non-metallic materials.
High-precision torque sensor ensures accurate measurement.
Supports forward and reverse torsion testing.
Real-time display of torque, angle, and test data.
Automatic recording and analysis of test results.
Adjustable fixture spacing to accommodate different specimen sizes.
Adjustable torque range and torsion speed to meet various testing requirements.
Stable operation, simple maintenance, and reliable test performance.
