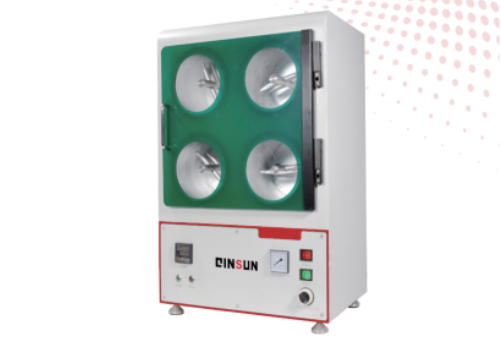

Fabric Textile Random Tumble Pilling Tester
The G227T Random Tumble Pilling Tester evaluates the pilling resistance of textiles, including knitted fabrics, woven fabrics, wool, and blended materials. It simulates real-life abrasion by rotating samples in a controlled “random tumble” environment, providing accurate, repeatable data for R&D, quality control, and production monitoring.
The tester is available in two-box or four-box configurations and features digital electronic preset counters for precise cycle tracking.
Applications
Evaluate fabric propensity to pilling, fuzzing, or matting
Quality control for textile production and finished goods
Material performance verification for R&D and third-party testing laboratories
Product development testing for new fabrics and blended textiles
Testing Standards
| Standard | Scope |
|---|---|
| GB/T 4802.4 | Textiles – Testing methods for pilling – Random tumble method |
| ISO 12945-3 | Determination of fabric propensity to surface pilling – Random tumble method |
| ASTM D3512 | Standard test method for pilling resistance of textile fabrics |
| DIN 53867 | Method for related surface changes of textile fabrics |
| JIS L1076 | Testing methods for pilling of woven and knitted fabrics |
Key Features
High-Concentric Impeller: Ensures uniform rotation and minimizes instrument impact on results
Transparent Observation Window: Built-in lighting allows real-time monitoring of sample behavior
Imported Test Lining: Provides accurate data, good repeatability, and long service life
Flexible Air Control System: Adjustable intake pressure (14–21 kPa) ensures standard test conditions
Two Test Modes: Timing and counting modes with audible end-of-test alarm
Two-Box or Four-Box Design: Four-box design improves efficiency and throughput
Robust Construction: Aviation aluminum impeller and sealed chamber for reliable operation
Technical Parameters
| Parameter | Specification |
|---|---|
| Test Mode | Automatic |
| Test Chamber Depth | 152 mm |
| Test Speed | 1200 rpm |
| End Alarm | Buzzer |
| Test Stations | 4 |
| Adjustable Pressure | 14–21 kPa |
| Timer | AUTONICS 6-bit timer counter |
| Impeller Material | Aviation aluminum |
| Impeller Length | 121 mm |
| Test Chamber Diameter | 146 mm |
| External Dimensions (L×W×H) | 90 × 80 × 110 cm |
| Weight | 75 kg |
| Power Supply | AC 220V, 50Hz |
Why Choose Us
Professional textile testing instrument manufacturer
Compliant with GB/T, ISO, ASTM, DIN, and JIS standards
Accurate, reliable, and easy-to-use for R&D, QC, and production
Flexible configuration for two-box or four-box testing
Full support for installation, training, and maintenance
FAQ
1. Can the tester handle multiple fabric types?
Yes, suitable for knitted, woven, wool, and blended fabrics.
2. How many boxes can be used simultaneously?
Two-box or four-box configurations are available.
3. Is the test chamber observable during operation?
Yes, a transparent window with built-in lighting allows real-time observation.
4. Can the air pressure be adjusted?
Yes, standard range is 14–21 kPa for controlling test conditions.
5. Does the machine stop automatically?
Yes, the timer or count mode triggers an audible buzzer at the end of the test.
