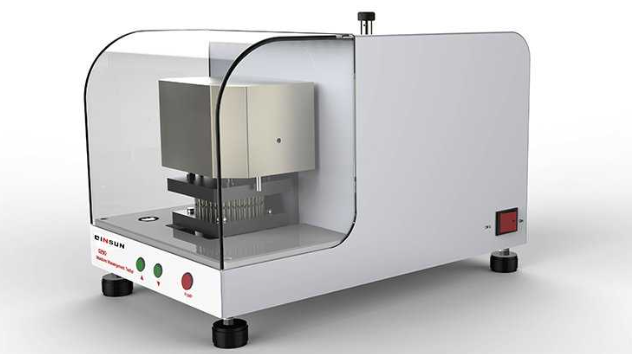

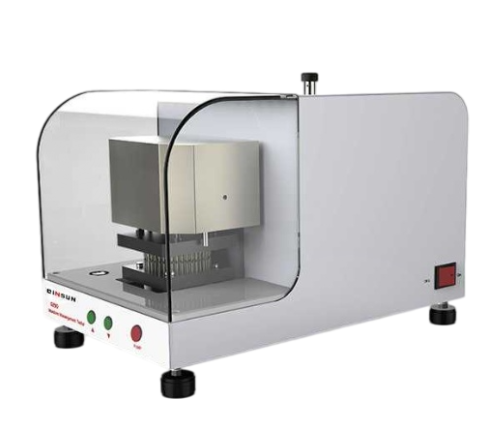

Moisture Management Tester (MMT)
The Moisture Management Tester is the only instrument on the market that can precisely measure the liquid management properties of performance and technical fabrics, ensuring the comfort and protection that consumers demand.Fabric liquid moisture transport properties in multi-dimensions, called moisture management properties, influence the human perception of moisture sensations significantly. To improve the comfort of today's clothing, especially in sportswear, it is important to know the liquid moisture management properties of the fabric.
Applications
The Moisture Management Tester (MMT) is an equipment to measure the dynamic liquid transport properties of textiles such as knitted and woven fabrics.
Standards
(1)AATCC 195 — Liquid Moisture Management Properties of Textile Fabrics
(2)ASTM D1776 — Standard Practice for Conditioning and Testing Textiles
(3)ISO 139 — Textiles — Standard atmospheres for conditioning and testing
Parameters
| Items | Parameters |
|---|---|
| Instrument dimension | 240 mm (H) × 320 mm (L) × 200 mm (W) |
| Net weight | 8 kg |
| Interface | WiFi |
| Power supply | 110V~230V, 50Hz/60Hz, 0.5A |
| Operation temperature & humidity | 18°C~40°C, 20%~80% RH (non-condensing) |
| Pump operation time | 20 sec |
| Test solution conductivity | 16 mS ± 0.2 mS |
| Upper pressure weight | 4.65 N ± 0.05 |
Professional Technology
A. Shell all-metal structure, external interference signal has good anti-interference ability.
B. Improving the structure of testing sensor, manual to automatic , the upper sensor, driven by a stepper motor built-in pressure testing equipment, to the fixed pressure automatically stop, can automatically return after the test .
C. Improving the structure of the pump water ,pump water uniformly stable, and can adjust pump water flow by software，Water pump can reverse pumping, make the liquid left in the pipe return to storage tank, prevent brine crystallization plugging silicone tube.
Configurations
1.Mainbody
2.MMT analysis software
3.Conductivity Meter
FAQ
(1)What textile properties can be evaluated using this tester?
This tester evaluates the dynamic liquid transport behavior of fabrics, including how moisture moves through textile layers. It is commonly used to analyze moisture management performance of knitted fabrics, woven fabrics, sportswear materials, and functional textiles.
(2)Why is moisture management testing important for sportswear fabrics?
During physical activity, fabrics need to transport sweat away from the skin effectively. Moisture management testing helps developers compare different materials and fabric structures to improve wearing comfort, drying performance, and overall user experience.
(3)What types of fabric samples are suitable for testing?
The instrument is designed for knitted and woven textile materials. It can be used for evaluating fabrics made from different fibers, yarn structures, and finishing processes where liquid moisture transport performance needs to be measured.
(4)How does the instrument ensure stable test results?
The system uses automatic sensor movement, controlled pressure application, and uniform liquid supply to reduce manual operation errors. The software records test data consistently, improving repeatability during laboratory evaluations.
(5)What should laboratories consider when purchasing a moisture management tester?
Laboratories should consider testing standards, sample types, measurement accuracy, software functions, and operating stability. Equipment with automatic control and reliable liquid delivery is important for obtaining consistent textile moisture performance evaluations.
