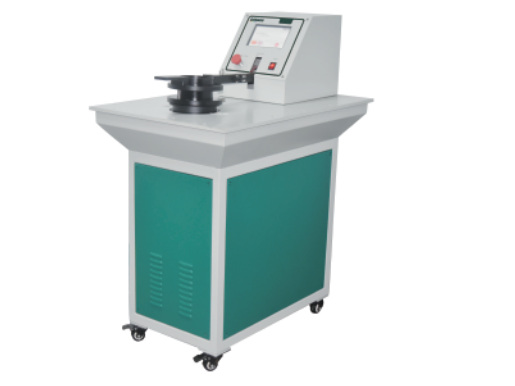

Fabric Air Permeability Tester

The Fabric Air Permeability Tester is used to determine the resistance of textile materials to the passage of air under a specified pressure differential. During testing, the specimen is firmly clamped by a designated test head with a defined test area, and air is drawn through the fabric at a constant pressure. The air flow rate through the specimen is measured to evaluate its air permeability.

The instrument is designed according to air permeability test standards for textiles, nonwoven materials, and paper products. It provides direct and rapid test results in user-selected units, supporting reliable material evaluation and quality control.

Application

The instrument is suitable for air permeability testing of the following materials and products:

Woven fabrics

Knitted fabrics

Nonwoven textiles

Medical masks and protective textiles

Paper and paper-based materials

Industrial textile materials

Standards

The Fabric Air Permeability Tester complies with the following standards:

BS 5636 — Method for Determination of Air Permeability of Textile Fabrics

JIS L 1096-A — Testing Methods for Woven and Knitted Fabrics

DIN 53887 — Testing of Textiles — Determination of Air Permeability

ASTM D737 — Standard Test Method for Air Permeability of Textile Fabrics

ASTM D3574 — Flexible Cellular Materials — Slab, Bonded, and Molded Urethane Foams

EN ISO 9237 — Textiles — Determination of the Permeability of Fabrics to Air

GB/T 5453 — Textiles — Determination of the Permeability of Fabrics to Air

EDANA 140.2 — Nonwovens — Air Permeability

EDANA 140.1 — Nonwovens — Air Permeability

TAPPI T251 — Air Permeability of Paper (Gurley Method)

AFNOR G07-111 — Textiles — Determination of Air Permeability

ISO 7231 — Textile Glass Fibre Fabrics — Determination of Air Permeability

Parameters

Features

Stable air pressure control ensures consistent airflow during testing.

Defined test head and clamping system ensure secure specimen fixation and repeatable results.

Direct digital display of air permeability values in selected units.

Short test cycle improves testing efficiency.

USB interface supports data communication and result management.

Suitable for textiles, nonwovens, paper, and related materials.

Accessories

Standard test heads

Specimen clamping device

Pressure control system

USB communication cable

Test Procedures

Condition the specimens according to the selected test standard.

Select the appropriate test head and install it on the instrument.

Place the specimen on the test head and clamp it securely.

Set the required pressure differential.

Start the test; the instrument automatically measures the air flow through the specimen.

Record the air permeability value displayed by the instrument.

Repeat the test as required and calculate statistical results if necessary.

Maintenance Information

Keep the test head and clamping surfaces clean and free of lint or dust.

Periodically verify pressure accuracy and airflow calibration.

Avoid testing damaged or heavily contaminated specimens.

Disconnect power when the instrument is not in use and store in a dry environment.

FAQ

(1) What is this product?

It is a laboratory testing instrument used to measure the air permeability of textile, nonwoven, and paper materials.

(2) What is this product used for?

It is used to evaluate the airflow resistance and breathability of fabrics under specified pressure conditions.

(3) Why is this product important?

It provides standardized air permeability data for material selection, quality control, and product compliance assessment.

(4) What industries is this product suitable for?

Textile manufacturing, nonwoven production, medical protective products, paper industry, and testing laboratories.

(5) What types of this product are available?

The standard configuration includes a digital air permeability tester with adjustable pressure range and USB data interface.
