FAQ: What are the technical specifications of UV Accelerated Weathering Tester?

FAQ: What are the technical specifications of UV Accelerated Weathering Tester?

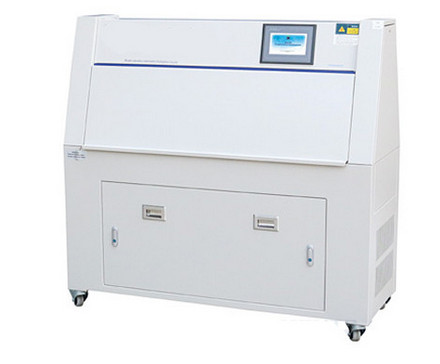

Different models of UV Accelerated Weathering Tester have different technical specifications, here is a brief analysis of QINSUN's ATLAS UVTest ™ UV weathering tester as a reference.

Technical parameters.

1, radiation uniformity: covering 4% of the entire sample surface

2, irradiance: minimum: 0.35 W/m2 (UVA, UVB) maximum: 1.55 W/m2 (UVA), 1.23 W/m2 (UVB)

3. Black plate temperature range: UVB stage - BPT 35-80 °C (95-176 °F) Condensation stage - BPT 35-60 °C (95-140 °F)

4、Sample capacity: 48 + BPT on 24 sample clips

5、Weight: 140KG (310LB) or so, depending on the options

6、Power supply.

120 VAC (± 10%), 1 Ph., 2 Wire (1/N/PE), 50/60 Hz, 12A230 VAC (± 10%), 1 Ph., 2 Wire (1/N/PE or 2/PE), 50/60 Hz, 8A

7、Spray water pressure: 25-40psi(1.7-2.7bar)

8、Condensate requirement

Pressure: 2-60psi(0.1-4.1bra)

Purity: Deionized water is recommended, but not required.

Conformity to standards.

ASTM D4329, ASTM D4587, ASTM D4799 , ASTM D5208, ASTM G151, ASTM G154 , EN 927-6, EN 1297 , EN 1898 FIBC, EN 12224 , EN 13523-10 , ISO 4892-1, ISO 4892-3, ISO  11507, ISO 11895, ISO 11997-2, SAE J2020, prEN 1062-4.
