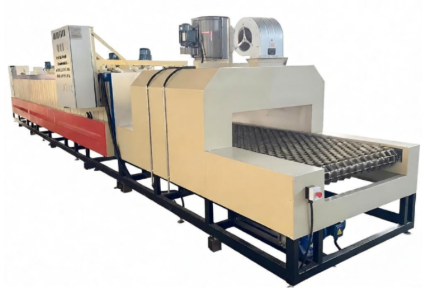

Filter Moisture Drying Furnace
The Filter Moisture Drying Furnace is a specialized drying equipment designed for various industrial filters, including HEPA high-efficiency filters, automotive filters, and hydraulic filter elements after cleaning or manufacturing processes.The system adopts hot air circulation heating technology combined with a forced dehumidification system, enabling rapid and uniform removal of residual moisture from filter media, filter elements, and frames, ensuring stable product performance and reliable quality.
Applications
1. Filter Element Manufacturing
Used for:
Drying and curing of paper filter elements after forming processes
Drying of synthetic fiber folded filter elements
Post-processing of filter media production
2. Filter Cleaning and Refurbishment
Applied for:
Rapid moisture evaporation after ultrasonic cleaning of industrial filter meshes
Drying of reusable filters after washing processes
3. Pre-Coating Surface Treatment
Used for:
Drying metal filter housings after cleaning
Removing surface moisture before coating to prevent rust formation
Product Parameters
| Parameter Item | Technical Specification |
|---|---|
| Temperature Range | Room Temperature – 200℃ (Adjustable) |
| Temperature Control Accuracy | ±1℃ |
| Heating Power | 15 kW – 45 kW (Customized according to chamber volume) |
| Fan Power | 0.75 kW – 3.0 kW |
| Power Supply | AC 380V, 50Hz, Three-phase Five-wire System |
| Structural Material | Inner chamber: SUS304 stainless steel; Outer shell: High-quality A3 cold-rolled steel sheet with powder coating |
Features
1. High-Efficiency Drying Performance
The equipment adopts an optimized hot air circulation duct design, ensuring uniform temperature distribution inside the drying chamber and efficient moisture removal.
2. Energy Saving and Environmental Protection
Equipped with a high-density aluminum silicate fiber insulation layer, which effectively reduces heat loss and improves energy efficiency.
3. Intelligent Temperature Control
Uses a microcomputer PID temperature controller supporting multi-stage programmable temperature control for precise drying processes.
4. Comprehensive Safety Protection
The system is equipped with:
Over-temperature alarm
Fan overload protection
Leakage protection
to ensure safe and stable operation.
