Threaded Component Torsion Testing Machine
The Threaded Component Torsion Testing Machine is mainly used for torsion testing of threaded components, thread torque testing, and torsional performance testing of components.

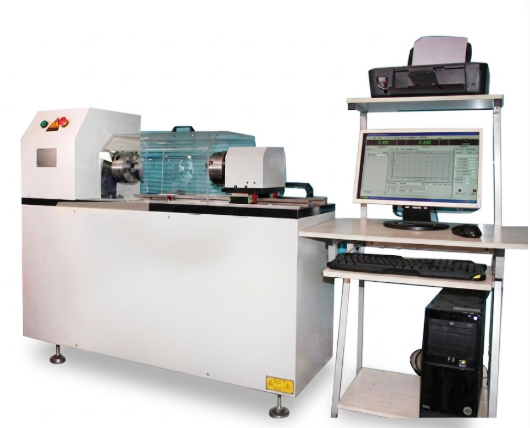

The tested specimen is installed between fixtures with adjustable spacing, allowing the machine to accommodate torsional mechanical performance testing of different specimens. The test bench uses computer-controlled operation and can collect torque, peak torque, angle, curve, and other test data. The display shows torque-time, torsion angle-time, and torque-torsion angle test curves. Test data can be stored, retrieved, and printed as test reports.
Application
The Threaded Component Torsion Testing Machine is mainly used for:
(1) Threaded component torsion testing
(2) Thread torque testing
(3) Component torque testing
(4) Threaded part torsional mechanical performance testing
(5) Component torsional performance testing
(6) Torsion testing of different threaded specimens
Standards
GB/T 2611 — General Requirements for Testing Machines
Parameters
| Parameter | Specification |
|---|---|
| Machine Type | Horizontal |
| Testing Machine Class | Class 1 |
| Accurate Measurement Range | 1% FS–100% FS |
| Torque Indication Error | Better than ±1% |
| Torque Repeatability Error | Better than 1% |
| Angle Resolution | 0.01° |
| Angle Measurement Accuracy | Better than ±1% |
| Torsion Fixtures | Three-jaw chuck type, bidirectional top-tightening type |
| Test Travel | 300 mm or 500 mm, can be increased |
| Torsion Speed Control Range | 0.01–5 R/min, stepless speed adjustment |
| Torsion Speed Control Accuracy | Better than ±1% |
| Appearance | Complies with GB/T 2611 requirements |
| Completeness | Complies with relevant standard requirements |
| Protection Function | Overload protection |
| Power Supply | 220 V, 50 Hz |
Features
(1) Threaded Component Testing – Designed for torsion and torque testing of threaded components and related parts.
(2) Adjustable Fixture Spacing – The tested specimen is installed between fixtures with adjustable spacing to accommodate different specimens.
(3) Computer-Controlled Operation – The test bench uses computer-controlled operation for test control and data acquisition.
(4) Multiple Data Acquisition – Torque, peak torque, angle, curves, and other test data can be collected.
(5) Test Curve Display – The system displays torque-time, torsion angle-time, and torque-torsion angle curves.
(6) Stepless Speed Adjustment – The torsion speed can be continuously adjusted within the specified control range.
(7) Overload Protection – The testing machine is equipped with an overload protection function.
