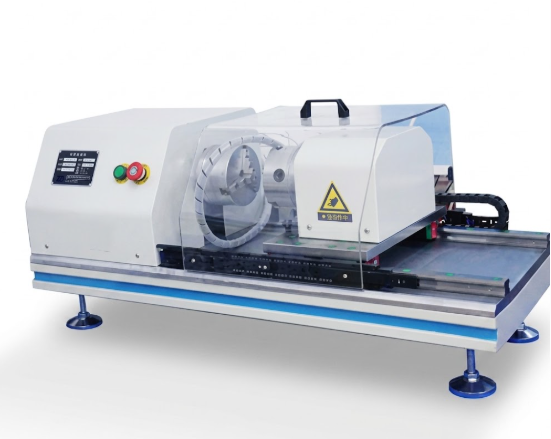

Insulator Torsion Testing Machine
The Insulator Torsion Testing Machine is mainly used to test the mechanical properties of insulators, including torsion, torque, torsional breaking strength, torsional deformation, and torsional stiffness.
The machine provides bidirectional torque loading and supports fully automatic loading. With adjustable test travel and customizable torque capacity, it can be configured according to the requirements of different insulator specimens.
Application
The Insulator Torsion Testing Machine is mainly used for:
(1) Insulator torsion testing
(2) Insulator torque testing
(3) Torsional breaking strength testing
(4) Torsional deformation testing
(5) Torsional stiffness testing
(6) Mechanical performance evaluation of insulator
Parameters
| Parameter | Specification |
|---|---|
| Product Name | Insulator Torsion Testing Machine |
| Maximum Torque | 20, 50, 100, 200, 500, 1000, 2000 N·m |
| Testing Machine Class | Class 0.5 / Class 1 |
| Torque Resolution | 0.001–0.01 N·m |
| Torsion Speed Control Range | 0.1–720°/min, customizable |
| Angle Measurement Range | 0–±99999° |
| Indication Repeatability Error | <0.5% |
| Torque Measurement Range | 1% FS–100% FS |
| Torque Loading Direction | Both directions |
| Torque Resolution | 1/±300000 |
| Test Travel | 500–1200 mm, customizable |
| Torque Indication Error | <±0.5% / <±1% |
| Torsion Angle Indication Error | <±0.5% |
| Loading Method | Fully automatic |
| Equipment Weight | Approx. 600 kg |
| Completeness | Complies with standard requirements |
| Power Supply | 220 V, 50 Hz |
| Protection Function | Overload protection |
Features
(1) Insulator Mechanical Testing – Designed for torsion, torque, torsional breaking strength, deformation, and stiffness testing of insulators.
(2) Wide Torque Selection – Maximum torque options range from 20 N·m to 2000 N·m, with customization available.
(3) Bidirectional Loading – Supports torque loading in both directions.
(4) Fully Automatic Loading – The supplied configuration uses a fully automatic loading method.
(5) Adjustable Test Travel – Test travel ranges from 500 to 1200 mm and can be customized.
(6) Wide Angle Measurement Range – The angle measurement range is 0–±99999°.
(7) Overload Protection – The testing machine is equipped with an overload protection function.
