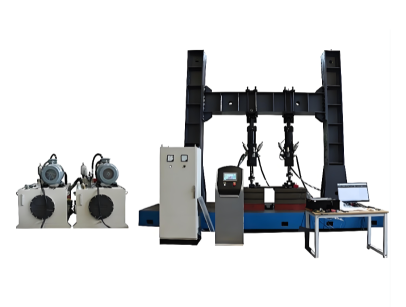

Multi-station Fatigue Testing Machine
The Multi-station Fatigue Testing Machine adjusts the amplitude and frequency according to the technical requirements of different specimens, and is used for compression, tensile, bending, fracture, high-frequency, low-frequency, low-cycle, and high-cycle fatigue life tests of various components, including springs, elastomers, spring plates, shock absorbers, automotive components, plastic parts, rubber parts, structural components, and medical stents.The machine supports computer control or tablet touch control, and can perform both static force testing and fatigue life testing on one device. It adopts a LCD Chinese character display, where test cycles and frequency can be programmed according to requirements and completed automatically.The preset test cycles enable automatic shutdown after completion. It features simple and fast button operation. The machine uses a motor and reducer connected to a cam mechanism to drive the connecting rod for reciprocating motion, realizing cyclic loading tests.
Applications
Fatigue life testing of springs, elastomers, spring plates, shock absorbers, automotive components, rubber parts, plastic parts, structural components, and medical stents.
Performs tensile, compression, bending, fracture, high-frequency, low-frequency, low-cycle, and high-cycle fatigue tests.
Widely used in automotive, machinery, medical, material research, universities, and quality inspection industries.
Standards
GB/T 2611 — General Requirements for Testing Machines
GB/T 3075 — Metal Materials — Fatigue Testing — Axial Force-Controlled Method
GB/T 16826 — Electro-hydraulic Servo Universal Testing Machines
ASTM E466 — Standard Practice for Conducting Force Controlled Constant Amplitude Axial Fatigue Tests of Metallic Materials
Technical Specifications
| Item | Specification |
|---|---|
| Maximum Test Force | 10 N–80 kN (Customizable) |
| Test Space Height | 100–3000 mm (Customizable) |
| Test Frequency | 0.5–60 Hz |
| Amplitude | Max. 0–50 mm (Customizable) |
| Counting Capacity | 999.999.999 cycles |
| Test Stations | Multi-station |
| Power Supply | 380 VAC, 50 Hz |
| Power Capacity | 7.5 kW |
| Counting Shutdown Accuracy | 1 cycle |
Features
Multi-station design, enabling simultaneous testing of multiple specimens and improving test efficiency.
Adjustable test amplitude and frequency according to different specimen requirements.
Supports both static force testing and fatigue life testing in one machine.
High-precision cycle counting with automatic shutdown after preset test cycles.
Computer control or touch tablet operation with automatic data processing.
Stable mechanical structure with reliable reciprocating loading system.
Suitable for research, product development, and quality control applications.
