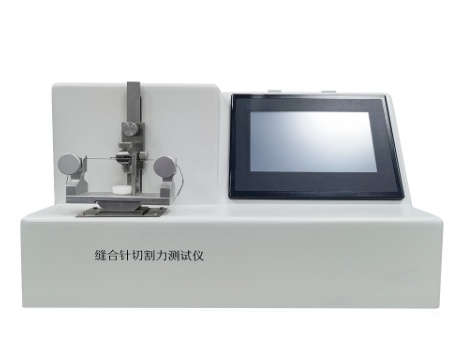

Suture Needle Cutting Force Tester
The Suture Needle Cutting Force Tester is a precision instrument specifically used to detect the force required by medical suture needles during the cutting process.
Applications
Evaluating Cutting Performance: By measuring the cutting force required for suture needles to penetrate simulated tissues, the cutting performance and stability of suture needles are evaluated. This is crucial for ensuring the effectiveness and safety of suture needles in actual surgeries. Quality Control: In the production process of medical devices, as a key tool for quality control, it is used to detect whether the cutting force of suture needles meets relevant standards and regulations.
R & D Support: During the R & D process of medical suture needles, the tester can provide key data support, helping researchers understand the impact of different materials, designs, and processes on the cutting force of suture needles, thus optimizing product performance. Product Certification: It provides the data support needed for product certification for manufacturers of medical suture needles, ensuring that products comply with relevant international or domestic standards and regulations.
Standards
YY/T 0043-2016:Medical suture needle
YY 0166-2002:Surgical suture needles with thread
Technical Parameters
| Serial No. | Parameter Item | Parameter Details |
|---|---|---|
| 1 | Operation Interface | Offers simplified Chinese/English selection; user-friendly and easy to operate |
| 2 | Measurement Range | 0 - 80N, with an error not exceeding ±0.1N (ensures measurement accuracy) |
| 3 | Testing Speed | ≤10mm/s (freely settable), simulating cutting speed in actual surgeries |
| 4 | Resolution | 0.01N (supports high-precision measurement for fine evaluation of suture needle cutting force) |
| 5 | Sensor | High-precision force value sensor (ensures measurement stability and reliability) |
| 6 | Display Screen | 7-inch high-resolution touch screen (directly displays test data and curves) |
| 7 | Programmable Controller | PLC/ARM (supports multiple testing modes and data processing functions) |
| 8 | External Dimensions | 430×290×250mm (specific dimensions may vary by model) |
| 9 | Power Supply | AC90V - 240V/50Hz (adaptive wide voltage, convenient for use across countries/regions) |
Features
1. High Precision and High Repeatability
The testing instrument is equipped with high-precision sensors that can accurately capture force changes at the millinewton level. Combined with an advanced control system that precisely adjusts testing parameters, it ensures consistency of test data across multiple tests and different scenarios. This provides reliable data support for enterprise product quality control (eliminating defective products, reducing quality risks, and ensuring patient safety) and R&D optimization (scientific analysis and improved product performance).
2. Strong Flexibility
The testing parameters (speed, force) and clamp gripping force can be flexibly adjusted according to different specifications and designs of surgical needles, such as triangular and round needles. This allows for accurate evaluation of the cutting performance of various surgical needles while avoiding damage to the needle body. It is compatible with testing both conventional and new special surgical needles, assisting enterprises in efficient quality inspection and new product development.
3. User-Friendly Human-Machine Interface
It features an intuitive touchscreen/computer control interface, making operation simple and easy to understand; it supports automatic generation of standardized reports containing key data (puncture force, cutting force, etc.) and trend charts, saving labor and reducing errors. Some advanced models also support real-time data monitoring and remote transmission, facilitating timely problem handling and cross-regional data sharing.
Accessoriess
Main unit × 1
Testing software × 1 (PC version)
Instruction manual / Operation manual × 1
Certificate of conformity / Warranty card × 1
Power cord × 1 (AC 90V-240V/50Hz adaptive)
Matching fixtures × 1 set (including various specifications)
Standard weights × 1 set (for calibration)
Printer paper × 1 roll
Suture thread × 1 roll (usually 4-0 or 3-0 gauge)
Wrench set × 1 (for fixture adjustment)
FAQ
1. What is the main purpose of the Suture Needle Cutting Force Tester?
The Suture Needle Cutting Force Tester is specifically used to detect and measure the force required by medical suture needles during the cutting process.
2. How does the tester evaluate the cutting performance of suture needles?
The tester measures the cutting force required for suture needles to penetrate simulated tissues, allowing evaluation of cutting performance and stability under controlled conditions.
3. Which standards does the Suture Needle Cutting Force Tester comply with?
The tester is designed in accordance with YY/T 0043-2016 Medical Suture Needle and YY 0166-2002 Surgical Suture Needles with Thread.
4. What measurement range and accuracy does the tester provide?
The instrument has a measurement range of 0–80 N, with an error not exceeding ±0.1 N and a resolution of 0.01 N.
5. What types of suture needles can be tested using this device?
The tester supports different specifications and designs of surgical needles, including triangular needles and round needles, by using adjustable fixtures.
6. What features support reliable testing and data consistency?
The device uses high-precision force sensors, a programmable PLC/ARM controller, adjustable testing parameters, and a 7-inch high-resolution touch screen to ensure high repeatability and reliable data.
