Schopper Abrasion Tester
The Schopper Abrasion Tester is a precision instrument designed for evaluating the abrasion resistance of fabrics, particularly for automotive interior applications. It employs a rotational abrasion method to apply tangential friction on test specimens, providing reliable data on wear performance and surface changes according to international textile and automotive standards.
Application
(1) Abrasion testing of automotive interior fabrics
(2) Evaluation of textiles in seating, headliners, and other interior components
(3) Assessment of durability and wear performance for quality control
(4) Laboratory R&D for textile materials under friction conditions
(5) Verification of material compliance with DIN, GMW, VW/Audi standards
Standards
(1) DIN 53863 Part 2 – Textile Surface Abrasion Test (Rotary Method)
(2) GME Standard 60345
(3) GMW Standard 3283
(4) VW/Audi Zentral-Norm PV 3908
Parameters
| Parameter | Specification |
|---|---|
| Rotation Speed | 75 rpm |
| Cone Angle | 166° |
| Test Head Inclination | 7° |
| Sample Size | 100 cm² |
| Test Area | 50 cm² |
| Sample Arch Height Adjustment | 0 – 10 mm, with measuring accessory |
| Sample Pressure | 0.5 N – 25 N, adjustable |
| Load Weights | 50 g, 100 g, 250 g, 500 g, 1000 g, 1500 g |
| Dimensions (W×D×H) | 325 × 565 × 560 mm |
| Weight | 35 kg |
| Power Supply | 115/240 V, 50/60 Hz |
| Power Consumption | 130 W |
Features
(1) Compact and robust design with easy-to-use fixture for rotational abrasion testing.
(2) Adjustable tangential load and sample arch height for precise testing.
(3) Touchscreen operation with manual or automatic control modes.
(4) Automatic stop every 100 abrasion cycles to allow rotation direction adjustment.
(5) High repeatability and reliability for laboratory and production quality control.
(6) Suitable for testing according to multiple international textile and automotive standards.

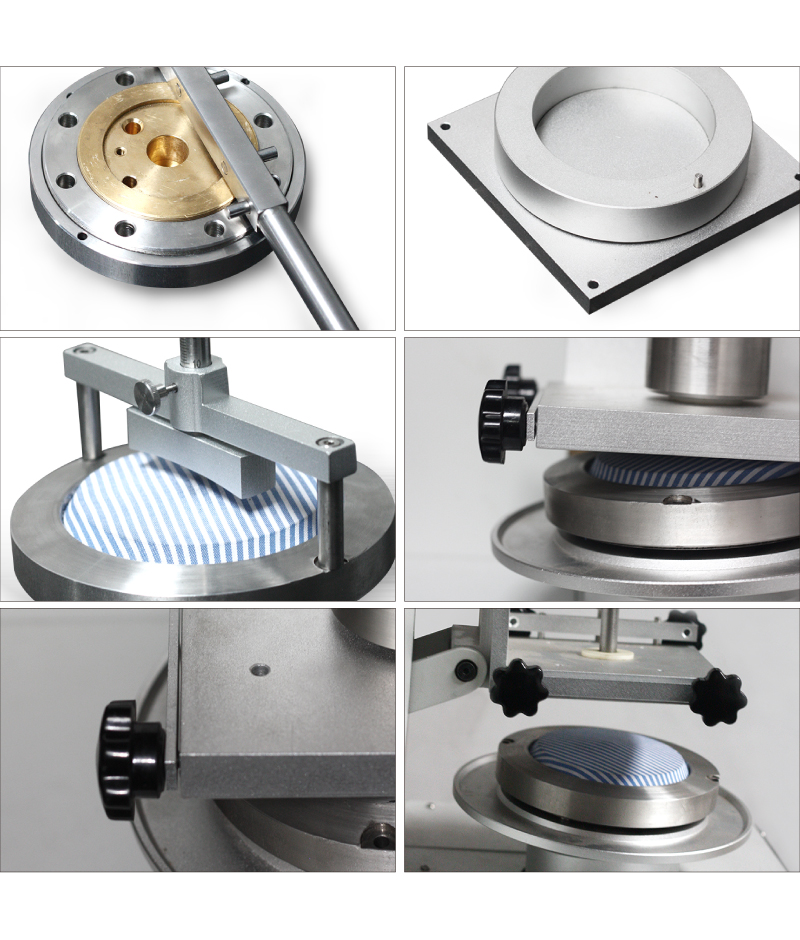

Accessories
(1) Set of load weights (50 g, 100 g, 250 g, 500 g, 1000 g, 1500 g)
(2) Adjustable ring wrench for sample height measurement
(3) Sample fixture with blunt cone chuck
(4) Friction head loading platform
(5) Touchscreen control interface
Test Procedures
Place the test specimen on the friction head platform.
Adjust the sample arch height and apply the desired tangential load.
Select test mode (manual or automatic) via the touchscreen interface.
Start the test; the sample rotates under the friction head.
The instrument automatically stops every 100 cycles for operator adjustment.
After completion, evaluate surface wear and abrasion patterns on the test specimen.
Maintenance Information
(1) Regularly check and clean the friction head and loading platform.
(2) Verify load weights and sample fixture alignment before testing.
(3) Inspect moving parts and lubricate as necessary to ensure smooth rotation.
(4) Maintain a stable power supply and check electrical connections.
(5) Store the instrument in a clean, dry environment when not in use.
FAQ
What is this product?
It is a Schopper Abrasion Tester for evaluating the abrasion resistance of textile materials.
What is it used for?
To measure wear performance and surface changes of fabrics, especially for automotive interiors.
Why is it important?
Ensures durability and quality compliance of fabrics used in automotive and industrial applications.
Which industries is it suitable for?
Automotive interior, textile manufacturing, quality control laboratories, and R&D centers.
What are the similar products?
Martindale Abrasion Tester, Taber Abrasion Tester, Reciprocating Abrasion Tester.
