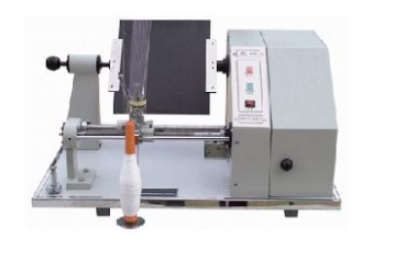

Blackboard Shaker
The Blackboard Shaker is a precision instrument designed to evaluate the appearance quality of yarns. By shaking yarns of specified density across a blackboard surface, it allows standardized visual assessment and comparison. It is widely used in textile laboratories, quality control departments, and research institutes for yarn inspection.
Application Scenarios
(1) Apparel fabrics: cotton, polyester, wool, nylon, spandex, and blended yarns before weaving or knitting
(2) Home textiles: yarns used in bedding, upholstery, curtains, table linens
(3) Industrial fabrics: yarns for automotive interiors, filtration materials, protective garments
(4) Functional textiles: flame-retardant yarns, coated yarns, waterproof/breathable laminates
(5) Laminated or composite materials: PU/PVC synthetic leather yarns, soft-touch coatings, printed laminates
(6) Smart and sensitive textiles: temperature-adaptive or conductive yarns for wearable electronics
(7) Laboratory and R&D testing: fiber and yarn development, yarn twist, density, and uniformity evaluations
(8) QC and inspection: yarn quality control in textile mills, spinning mills, and inspection institutes
(9) Educational and research purposes: textile engineering studies, yarn property demonstrations, and standard compliance testing
(10) Comparative evaluation: assessing yarn appearance, density, thickness, and consistency across different batches or suppliers
Compliance Standards
(1) GB/T 999 — Test methods for textile yarn
(2) GB/T 398 — General rules for textile testing
(3) GB/T 5324 — Test method for yarn appearance
(4) FZ/T 32004 — Test methods for yarn twist and density
(5) FZ/T 32005 — Yarn appearance quality evaluation
(6) ISO 2060 — Textiles — Yarn numbering (direct system)
(7) ASTM D1423 — Standard Test Method for Yarn Twist
Key Features
(1) Adjustable blackboard for different yarn densities
(2) Precise shaking mechanism to ensure consistent yarn movement
(3) Compact and stable structure for reliable operation
(4) Easy-to-read blackboard surface for visual inspection
(5) Low power consumption suitable for laboratory use
Technical Parameters
| Parameter | YG381 | YG381M |
|---|---|---|
| Blackboard Size | 250 × 220 mm | 250 × 220 mm |
| Yarn Density | 7, 9, 11, 13, 15, 19/cm | 35, 45, 55, 65/10 cm |
| Outline Size (L×W×H) | 620 × 370 × 340 mm | 620 × 370 × 340 mm |
| Power Supply | AC 220V, 40W | AC 220V, 40W |
Product Advantages
Standardized visual evaluation of yarn appearance for consistent quality control
Adjustable for different yarn densities and fiber types
Compact, stable, and easy-to-use design suitable for laboratories and QC departments
Low power consumption with reliable and precise operation
Supports educational, research, and industry compliance testing
FAQ
(1) What is the Blackboard Shaker?
It is a laboratory instrument for evaluating yarn appearance quality through standardized shaking on a blackboard surface.
(2) What is this equipment used for?
It is used for inspecting yarn uniformity, twist, density, thickness, and visual appearance in textiles.
(3) What types are available?
YG381 for standard yarn densities; YG381M for higher-density yarn measurements.
(4) What industry problems can it solve?
It ensures consistent yarn quality, supports QC in textile manufacturing, and assists in research and educational evaluations of yarn properties.
(5) How is it operated?
Install the yarn on the blackboard, adjust density settings, start the shaking mechanism; yarn movement is standardized for visual inspection and comparison.
