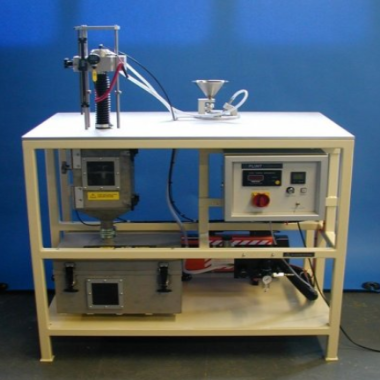

GAS JET EROSION RIG
Product Introduction & Applications
The Gas Jet Erosion Rig is designed to evaluate the erosion resistance of materials subjected to high-velocity particle impacts. It simulates real-world erosive environments such as turbine blades, engine components, pipe elbows, coatings, ceramics, and composite materials exposed to solid particle erosion.
The system controls particle velocity through adjustable air pressure and nozzle geometry, allowing users to conduct erosion studies across a wide range of impact conditions. An enhanced performance configuration is available, significantly increasing particle velocities for advanced research and high-stress test scenarios.
Typical applications include:
Research on erosion behavior of metals, alloys, ceramics, coatings, and polymers
Jet engine and gas turbine component erosion simulation
Pipeline and valve erosion evaluation
Material development and surface engineering studies
Quality control and durability testing across industrial sectors
Applicable Standards
(Depending on research field, the system can be used to support erosion test studies based on:)
ASTM G76: Standard Test Method for Conducting Erosion Tests by Solid Particle Impingement Using Gas Jets
ISO/industry-specific erosion testing practices
Custom R&D erosion protocols
Technical Parameters
Performance Specifications
| Category | Specification |
|---|---|
| Standard Performance Velocity | 25–80 m/s at 1.5 bar |
| Feed Rate | 0.2–2 g/min |
| Enhanced Performance Max Velocity | Up to 120 m/s at 4 bar |
| Particle Velocity Adjustment | Via air pressure and nozzle length |
| Pressure Differential (Enhanced Mode) | Approx. 3 bar drop between feed chamber and venturi injector |
Service Requirements
| Type | Specification |
|---|---|
| Air Supply (Standard) | Clean, dry air at 1.5 bar, 3.5 cfm |
| Air Supply (Enhanced) | 4 bar (flow rate dependent on setup) |
| Electrical Supply | 220–240V, single phase, 50 Hz, 1.5 kW |
Installation Requirements
| Parameter | Specification |
|---|---|
| Dimensions (W × H × D) | 1000 mm × 1200 mm × 400 mm |
| Mounting | Floor-standing frame |
