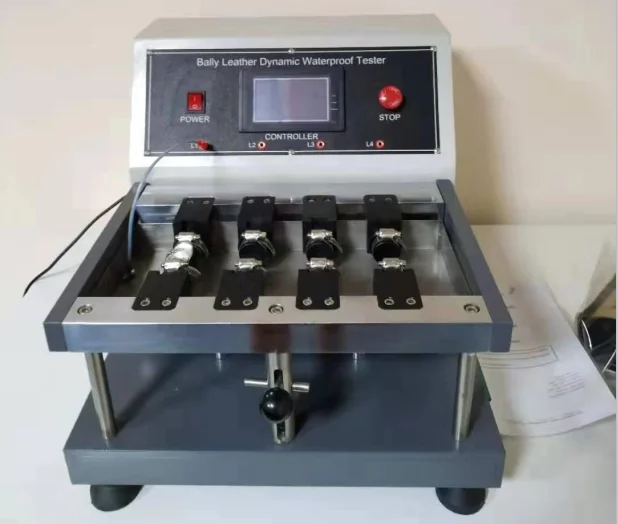

Bally Waterproofness Tester
Bally Waterproofness Tester is to test materials like coated leather, leather dynamic water penetration resistance ability. The material would be partially put in water and the bally water penetration tester would flex the sample in the water under certain speed to simulate material water resistance in daily work.
Application
(1) Natural leather and flexible leather.
(2) Coated leather and synthetic leather.
(3) Leather used for footwear uppers and linings.
(4) Leather used in automotive interiors and furniture upholstery.
(5) Other flexible sheet materials requiring dynamic water penetration resistance testing, subject to method compatibility.
Standards
DIN-53338,
ISO 5403-1 2011,
GB/T 22890-2008,
EN ISO 20344:2002(6.13),
QB/T 4044,
BS EN 13518-2002,
EN 344-1:1992(5.14),
DIN 53338,
ISO 17702-2003,
SATRA TM 171:1995,
GB/T 3903.17-2008
Principle
A rectangular test specimen is bent partly round, and secured between, two cylindrical clamps so as to form a trough. The trough is then immersed in water and the clamps oscillate at a constant speed so that the specimen is repeatedly flexed. The time taken for water penetration through the test specimen to occur is recorded. The mass of water absorbed by, and transmitted through, the test specimen can also be measured.
Parameters
| Parameter | Specification |
|---|---|
| Test quantity | 4 sets |
| Test stroke | 2 mm, 3 mm, 4 mm, and 6 mm, adjustable |
| Test speed | 50 cycles/min (CPM) |
| Counter | LCD, 0–999,999 cycles |
| Timer | LCD, 1–999 h |
| Dimensions (W × D × H) | 48 × 60 × 45 cm (18.9 × 23.6 × 17.7 in) |
| Weight | 53 kg |
| Power supply | Single-phase AC 110 V, 60 Hz, or 220 V, 50 Hz; 2 A, or other configurations by request |
Features
(1) Evaluates water penetration resistance under repeated wet flexing.
(2) Four test sets for testing multiple specimens.
(3) Adjustable test stroke to accommodate different test requirements.
(4) Constant test speed of 50 cycles per minute.
(5) LCD counter for monitoring the number of test cycles.
(6) LCD timer for tracking test duration.
(7) Records the time required for water to penetrate the specimen.
(8) Supports assessment of water absorption and water transmission when required by the selected test method.
