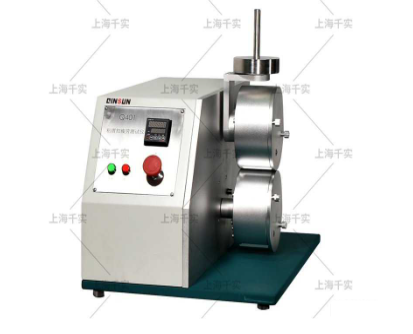

velcro belt fatigue resistance tester
Velcro Fatigue Tester is designed for opening and closing the hook and loop fasteners, A hook and loop fastener is repeatedly opened and closed for a specified number, and then is rolled by a roller to the hook side and the loop side to stick closely so as to determine the adhesive force and strength. This machine has a memory function. You can adjust the force applied to the specimen by adjusting the counterweight and load.
Application
This velcro fatigue test equipment is suitable for the shear strength and peel strength test between two layers for all kinds of touch and close fasteners.
(1) Textile hook and loop fasteners
Used to evaluate durability changes after repeated fastening operations.
(2) Footwear accessories
Applicable for testing hook and loop fastening systems used in shoes and sports footwear.
(3) Garments and apparel products
Used to verify fastening reliability and service life of clothing accessories.
(4) Industrial and functional fasteners
Suitable for evaluating touch and close fasteners used in protective equipment, bags, and other products.
Standards
1. DIN-3415 Textile touch and close fasteners; requirements.
2. SATRA TM123 Footwear - test method for touch and close fasteners .
3. ISO 22776 Test method for accessories: Touch and close fasteners — Shear strength before and after repeated closing.
4. GB/T 3903.20 Footwear. Test methods for accessories: Touch and close fasteners - Peel strength before and after repeated closing.
5. GB/T 3903.21 Test method for accessories: c — Shear strength before and after repeated closing.
6. GB/T 23315-2009 Touch and close fasteners.
Parameters
| Parameter | Specification |
|---|---|
| Driving Wheel Speed | 60 ±5 rpm |
| Steering and Switching Time | 30 ±0.5 sec |
| Sample Pressure | 1.0 ±0.1 N/mm |
| Counter Range | LCD 99,999,999 cycles |
| Dimensions (W×D×H) | 53 × 55 × 67 cm |
| Weight | 60 kg |
| Power Supply | 1∮ AC220V 50/60Hz 3A (according to local requirements) |
Features
(1) Simulates repeated opening and closing conditions of hook and loop fasteners.
(2) Evaluates durability changes in peel strength and shear strength after fatigue cycles.
(3) Adjustable loading force through counterweight adjustment.
(4) Equipped with memory function for convenient operation and test management.
(5) LCD cycle counter supports long-term fatigue testing records.
(6) Suitable for different types of touch and close fastener materials.
FAQ
(1) What products can be tested with a Velcro fatigue resistance tester?
This tester is suitable for hook and loop fasteners used in footwear, textiles, clothing, bags, protective products, and industrial accessories. It helps evaluate whether fastening performance remains stable after repeated opening and closing cycles.
(2) What performance changes does this tester evaluate?
The equipment evaluates the effect of repeated fastening operations on adhesive performance, including changes in peel strength and shear strength. These results help manufacturers improve material selection and product durability.
(3) Which standards are supported by this test equipment?
The tester supports multiple standards including DIN 3415, SATRA TM123, ISO 22776, and GB/T 3903.20/3903.21, covering fatigue evaluation methods for touch and close fasteners in textile and footwear applications.
(4) Why is fatigue testing important for hook and loop fasteners?
During actual use, fasteners experience repeated opening and closing, which may reduce bonding performance over time. Fatigue testing helps predict service durability and identify potential quality issues before mass production.
(5) How can I select the correct testing solution for my fastener products?
Different fastener structures, materials, and application environments may require different test conditions. QINSUN engineers can provide technical guidance and customized solutions according to your products, standards, and laboratory requirements.
