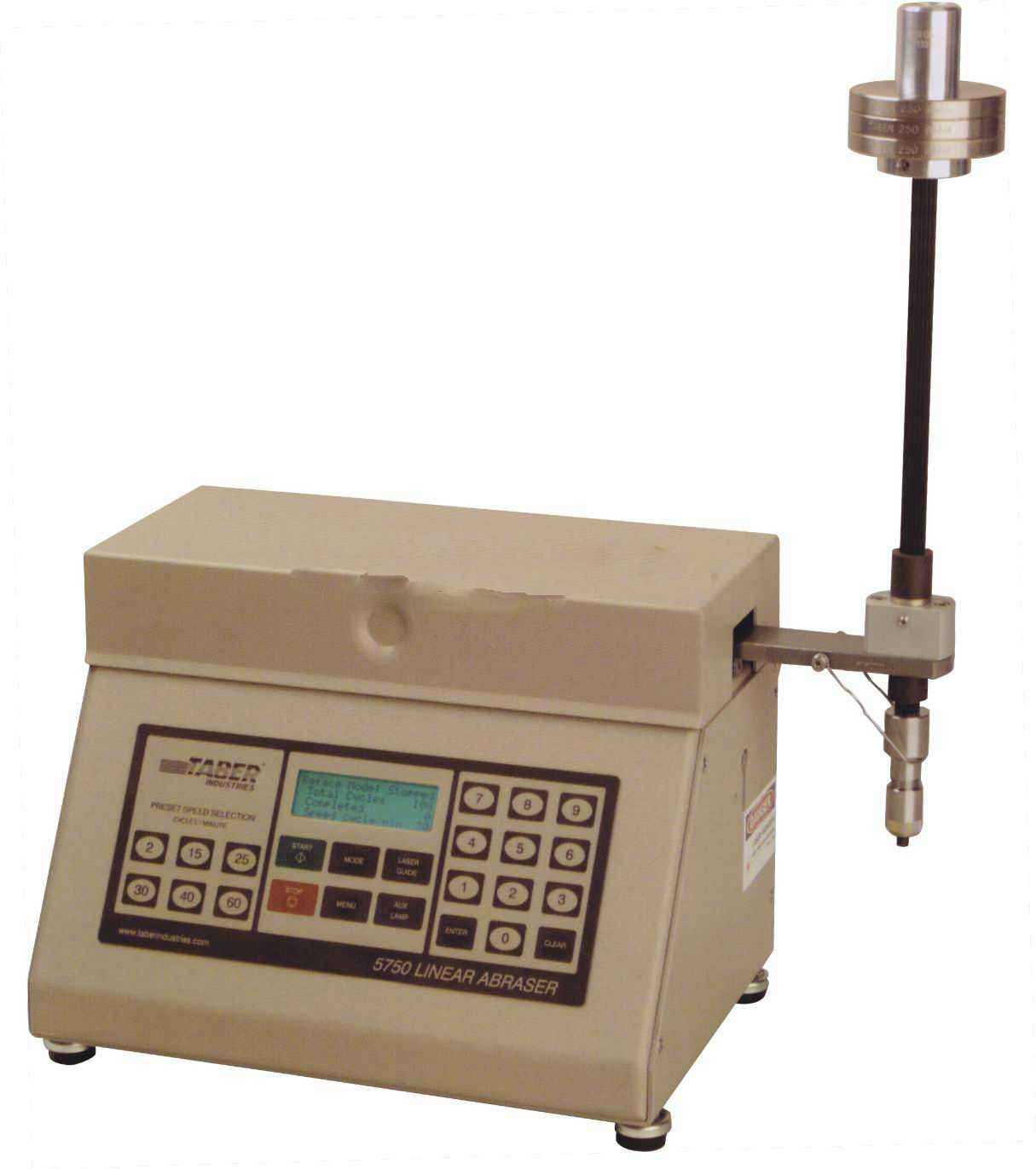

TABER 5750 Abrasion Tester

TABER 5750 Abrasion Tester
Standards:

ASTM D3884 、 ASTM D1175 、 ASTM D1044 、 ASTM D4060 、 TAPPI T476 、 ISO 9352 、 ISO 5470-1 、 JIS K7204 、 JIS A1453、 JIS K6902 、 JIS L1096 、 JIS K6964 、 DIN 52347 、 DIN 53109 、 DIN 53754 、 DIN 53799

TABER 5750 Abrasion Tester with CE certificate, also CE safety signs

TABER 5750 Abrasion Tester Applications:

TABER 5750 abrasion tester make performance test of any size or shape of any sample for abrasion tests with a contoured surface and the polishing surface characteristics of the product, highly desirable (such as: computer mouse and other computer or IT products plastic paint wear tests, used for plastics, auto parts, rubber, leather and textile, electroplating, free removal of components, paint products, printing, design, and other products.

TABER 5750 abrasion testing machine Features:

Used to evaluate the wear resistance, scratch resistance (single or multiple scratches) and color transfer of (usually abrasion discoloration or abrasion fastness) and so on.

Dry abrasion test, wet abrasion test can be carried out.

Abrasion Tester includes a host 5750, three disc-shaped weights 250g, 10 CS-10 and H-18 5 grinding rubber, 50 S-14 sandpaper and wear depth measurement etc.

Linear abrasion tester detailed parameters:

11 kinds of optional moving distance

Moving away from standard 0.2 ", 0.5", 0.61 ", 0.75"

1.0 ", 1.5", 2.0 ", 2.5", 3.0 ", 3.5" and 4.0 "

It can be customized special mobile distance."

Adjustable back and forth moving speed of 2 to 75 / min.

Wherein 2, 15, 25, 30, 40 and 60 back and forth / min six speeds, it has six preset buttons on the operation panel

The number of revolutions:

Can be set up to transfer 999,999 (Note grinding rubber during this time may need to be replaced)

Alternatively load

Standard load range is from 350g to 2100g (250g weight generally random configuration of three weights.) • Variety of optional weight

Abrasion Tester has five selectable moving distances:

Moving away from standard 0.5 ", 1", 2 "3" and 4 "

It can be customized special mobile distance

Adjustable back and forth moving speed of 2 to 75 / min.

Wherein 2, 15, 25, 30, 40 and 60 back and forth / min six speeds, it has six preset buttons on the operation panel

TABER 5750 wear testing machine main features:

Simulate real conditions of use:

You can set the moving distance, speed, rpm, load and other parameters

Choose a variety of different media and wear parts.

(Optional sample fixing table and other optional accessories, with the scratch, the extent of damage was measured and resistances to alcohol testing, measuring coin scratch resistance and the like.)

Ensure the stability and accuracy of the test:

Grinding its general size and shape as the end of a pencil eraser head are made of high quality wear materials. Ensure the stability for test.

Laser guided placement test samples to ensure the accuracy of the test.

Note: QINSUN always been committed to innovation and improve product performance and functionality, based on the reasons, the product specifications will be changed accordingly. The above without prior notice, the Company reserves the right to amend the final.
