Mullen & G229B Pneumatic Bursting Strength Tester

Mullen & G229B Pneumatic Bursting Strength Tester

Skype / Email



Bursting Strength Tester is widely used in textile , leather , paper and other fields. The bursting strength and height of woven, knitted, non-woven fabric, paper or board are measured by air pressure drum. It is the basic equipment for testing physical strength and strength of materials.


Mullen Bursting Strength Tester:

Main models:

Common models for the C, A


Standard:

ASTM D3786,AS2001.2.4,BS EN ISO 13938-1,GB/T 7742,ISO 13938-1,JIS L1018/L1093,IWSTM170


Instrument features:

1, the use of Mitsubishi 16-bit industrial-level MCU control, with strong anti-interference ability;

2, Equipped with Putian MT-300K printer, a test report can be printed with the output data.

Mullen Bursting Strength Tester


G229B Bursting Strength Tester:

Standards:

▶ GB/T 7742.1 Textile fabrics bursting properties - Part 1: Determination of bursting strength and expansion ratio;

▶ ASTM D3786 Test method for hydraulic bursting strength of textiles: diaphragm type bursting strength test method;

▶ BS EN ISO 13938-1 Textile bursting characteristics, Hydraulic method for bursting strength and bursting expansion;

▶ BS 3424-6-B Hydraulic method for determining fabric bursting strength;

▶ ISO 3303-B/3303.2 Glued or plastic coated fabrics. Determination of tear strength;

▶ ISO 2758 Paper. Determination of brittle fracture strength;

▶ ISO 3689 Determination of bursting strength after immersion;

▶ JIS L1018 Test method for knitted fabric;

▶ JIS L1093 Test method for gap strength of textiles;

▶ IWS TM170 International Wool Bureau Standard


Scope of application:
Digital bursting strength tester is used for the detection of woven, knitted, non-woven fabrics, paper or board about the bursting strength and height.

Instrument features:
A. Meet the maximum 100cm2 test area
B. Uniform clamping force, can be applied to all kinds of materials in all directions
C. Support online communication
D. Experimental area can be replaced, suitable for different standards
E. Store 50 custom standards
F. Test results such as: rich burst strength, bursting strength, diaphragm pressure, bursting height, and bursting time; make quality control personnel comprehensively understand the bursting performance of the sample.
G. Security shield automatic detection can automatically correct and exclude the film itself on the results

G229P Pneumatic Bursting Strength Tester

Technical Parameters:

A. Pressure: air pressure method
B. Measuring range: 0-1000kPa, accuracy: 0.2%
C. lower clip ring: 7.3cm2, 7.8cm2, 10cm2, 50cm2, 100cm2
D. Maximum expansion: 70 ± 0.02mm
E. Pressing rate: 1 ~ 100 kPa / min, speed adjustable
F. Output: print output, display output, real-time color graphics display
G. Power supply: Ac220V 50Hz 2000W


Instrument Configuration:
1. One host
2. A set of the next clip ring (5)
3. Expanded broken film 1 package
4. Silent pump 1 set
5. Glycerine 1 bottle
6. Test rubber film (2 pieces)
7. Mute laboratory air compressor (optional)


Product display:

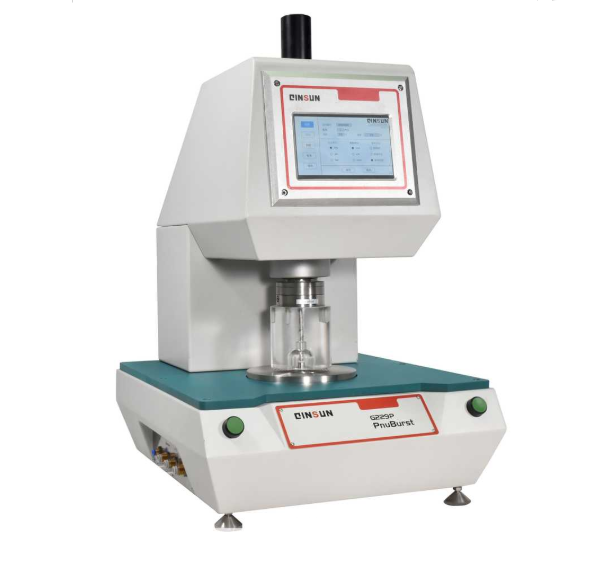

Mullen & G229P Pneumatic Bursting Strength Tester(图1)


What is the difference between Mullen and G229B pneumatic bursting strength tester?

Compared with Mullen bursting strength tester, G229B is a pneumatic bursting strength tester with many advantages:



1. Equipped with a liquid booster pump, which can easily realize the output pressure can be adjusted and controlled arbitrarily, and has a memorable instrument to record the instantaneous burst pressure;
2. It adopts high-efficiency micro-processing control system, advanced technology and reasonable structure design. It has the characteristics of small size, light weight, and beautiful appearance;
3. All pressure-bearing parts adopt standard parts of well-known international brands, without any welding connection, convenient for disassembly, high safety factor, long life and easy maintenance;
4. Manual control, digital pressure gauge display, computer control and other operation modes can also be selected;
5. G229P is PLC programming software control, fully automatic software operation interface, can realize remote monitoring and control equipment, and after-sales service is more convenient.


Note:QINSUN is very in place for textile testing and quality control,we have our own textile testing lab. Our textile testing equipment and testing methods are in the leading position in the industry. We have passed the textile testing certification and iso textile testing standards issued by a number of testing,We can provide textile testing equipment pdf manual. Sufficient inventory, big discounts, limited time promotion, Order now!
